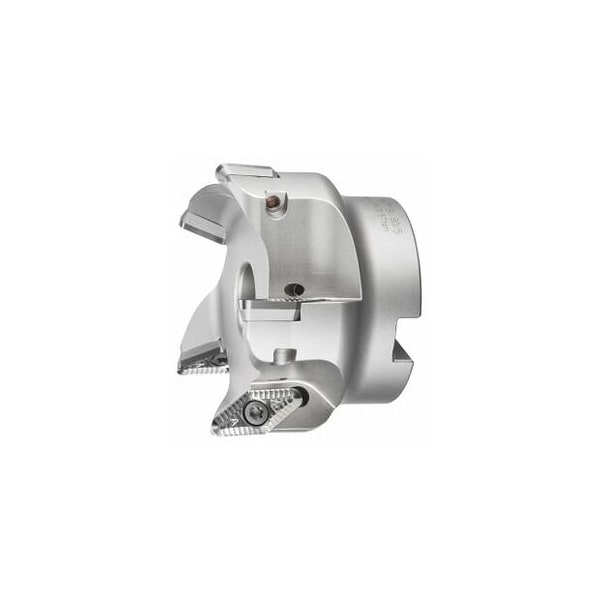

93 Degree Plunge Milling Cutter, with Bore, for VCG. Inserts, 80mm Diameter, 5 Inserts
Mfr # 211807 80/5
Zoro # G616120038
product price:Â $598.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
93°
Overall Length
55 mm
Cutting Dia.
80 mm
Number of Teeth
5
Insert Screw
219800 (20IP; 5.7 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 211807 80/5
- Zoro #
- G616120038
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 55 mm
- Cutting Dia.
- 80 mm
- Mounting Bore Dia.
- 27 mm
- Ramping Length for αmax
- 70.34 mm
- Diameter 3
- 74 mm
Details
- Item
- Plunge mill
- Cutting Angle
- 93°
- Number of Teeth
- 5
- Insert Screw
- 219800 (20IP; 5.7 Nm)
- Machining Strategy
- MTC
- Dia/No. of Cutting Edges
- 80 mm/5
- Circular interpolation milling ap
- 10 mm
- Overhang
- 55 mm
- Fz Helix
- 0.8
- Shank Type
- with bore
- Ramping Angle
- 2.44°
- Tool Exchange
- PowerCard
- Axial Rake Angle
- 0°
- Circular Interpolation Milling - Dmin
- 154 mm
- Coolant Through
- Yes
- Circular Interpolation Milling - Dmax
- 158 mm
Description
Version: Greater tool stiffness by elimination of twist between indexable insert and insert seat. Application: To prevent chips jamming- especially when milling deep pockets. Note: Use GARANT torque screwdriver TQ No. 211750 size 5.7 with bit No. 674252 size 20IP. Tool exchange: PowerCardD3: 74 mm Overall length Ltot: 55 mm Mounting bore : 27 mm Circular interpolation millingDmin: 154 mm Circular interpolation millingDmax: 158 mm Circular interpolation milling ap: 10 mm
