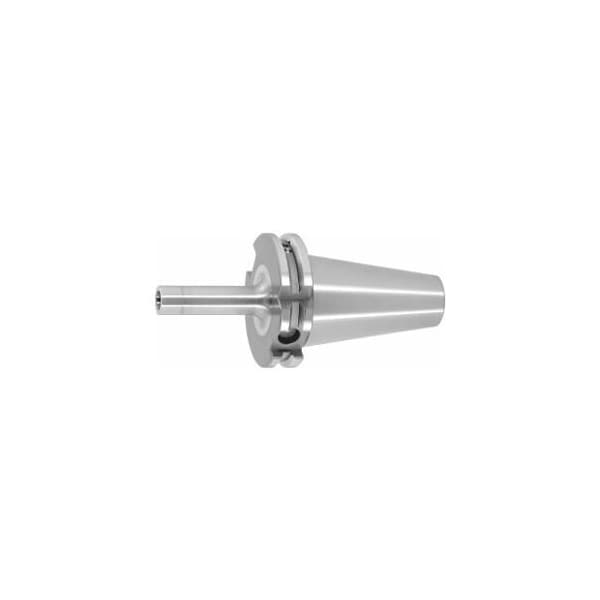

Arbor for Screw-in Milling Cutters with Thread, SK 40, M10X125
Mfr # 301309 M10X125
Zoro # G514776214
product price: $271.99
/ea
Free Shipping & Returns
Key Features
Shank Shape
ADB
Thread Size
M10x125
Concentricity
≤ 3 µm
Taper Size
SK40
Projection
144 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
301309 M10X125
Zoro #
G514776214
UPC #
-
Country of Origin
Germany
Dimensions
Thread Size
M10x125
Taper Size
SK40
Outside Dia.
34 mm
Bore Dia.
10.5 mm
Dia.
18 mm
Overall Length
125 mm
Details
Shank Shape
ADB
Concentricity
≤ 3 µm
Projection
144 mm
Balance Quality
G 2.5 at 25,000 rpm
Item
Threaded copy mill arbor
Machining Strategy
HSC
Standards
ISO 7388-1
Description
Plain design. Application: To take screw-in milling cutters with thread. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835. Machining strategy: HSC Overhang dimension A: 144 mm Bore Dia D1 tolerance IT6: 10.5 mm Dia D2: 18 mm External Dia D: 34 mm Reach L1: 125 mm L2: 5 mm
