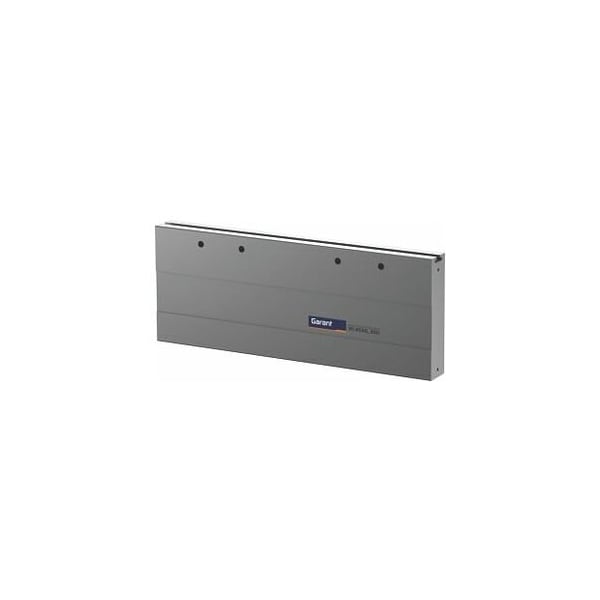

Base Rail for Tool Fitting Fixture, Type: 400

Modular system consisting of base rails, flexible tool modules for locking on the base rails and a height adjustment/height gage system. All components made from high-quality anodised aluminium. Advantage: Clean, tidy workstation - all assembly jigs in one place. Modular - base rail can be extended at any time through direct attachment. Flexible - two different tool modules fixed or pivotable. Quick and easy handling - locking lever on the tool modules, moving of the setting device on the base rail. GARANT Easyfix hole pattern on the rear of the base rail - attachment of storage facilities directly on the assembly jig. 100% solid and secure attachment of the arbor - does not wobble, protects the mounting taper. Application: Assembly/disassembly of all accessory parts of an arbor. Adopting/copying existing tool lengths. Measurement of the tool length. Small parts storage via GARANT Easyfix. Supplied with: 1x Easyfix wall mounting No. 955825 2, mounting bracket with cover for attaching the base rail, e.g. to a workbench. Optional extras: Tool module No. 358575 and 358580, height adjustment No. 358585. Note: The tool mounting device does not replace tool pre-setting. Length: 400 mm Width: 40 mm Height: 160 mm
