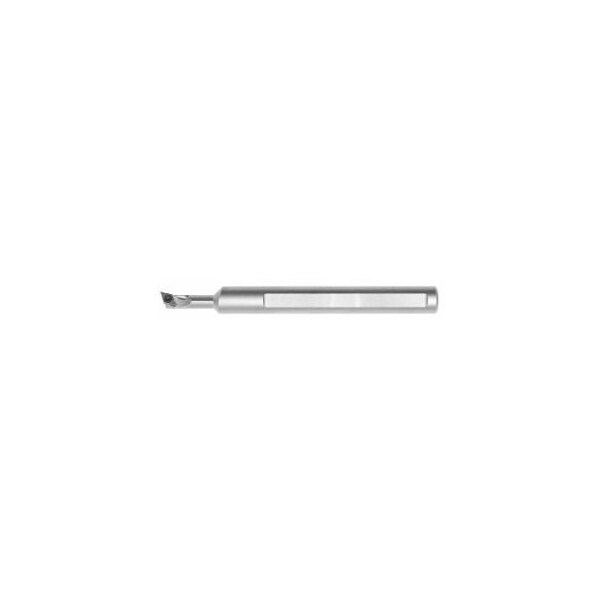

Carbide Boring Bar, E0408F SDQCL04, for DC 1.2 Inserts, Left-Hand
Mfr # 260321 0408/04
Zoro # G914820654
product price:Â
$
292.99
/ea
Free Shipping & Returns
Key Features
Overall Length
80 mm
Size
0408/04
Min. Pre-Drill Diameter Dmin
5.6 mm
Head Length
26 mm
Clamping Height
7.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 260321 0408/04
- Zoro #
- G914820654
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 80 mm
- Size
- 0408/04
- Min. Pre-Drill Diameter Dmin
- 5.6 mm
- Head Length
- 26 mm
- Clamping Height
- 7.5 mm
- Max. Bore Dia.
- 8 x D
- Usable Depth
- 1.1 mm
- Insert Size
- 4 mm
- Shank Dia.
- 8 mm
- Neck Width
- 4 mm
Details
- Item
- Boring bar
- Setting Angle
- 107.5 Angle
- Coolant Through
- Yes
- Shank Type
- Boring bar
- Material
- Carbide
- ISO Number
- E0408F SDQCR/L04
- Insert Shape
- 55 Degrees Diamond
- Center Offset
- 3 mm
- Application
- Internal longitudinal turning
- Cutting Direction
- Left-Hand
Description
Boring bar carbide 0408/04 mmStandard: Works standard Shank Diameters: 8 mm ISO code toolholder: E0408F SDQCR/L04 Setting angle k: 107.5 degrees suitable indexable insert: DC 04T0 Minimum pre-drill Diametermin: 5.6 mm Center offset L3: 3 mm
