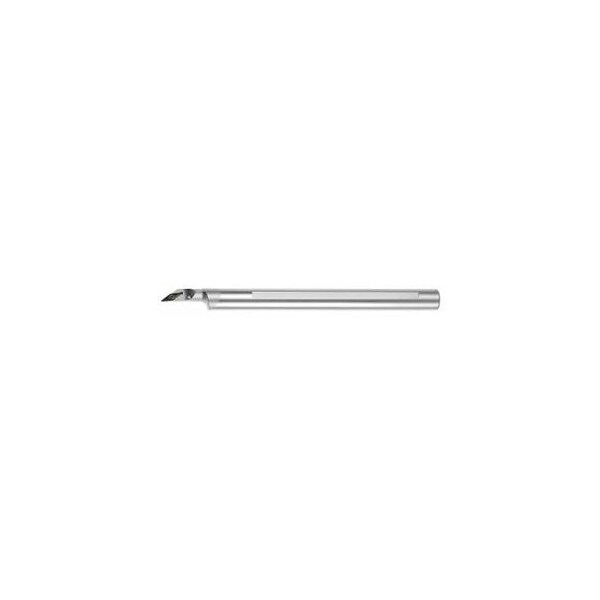

Carbide Boring Bar, E10K SVJCR07, for VC 07 Inserts, Right-Hand
Mfr # 261326 10/07
Zoro # G814820402
product price:Â $314.99
/ea
Free Shipping & Returns
Key Features
Overall Length
125 mm
Insert Shape
35 Degrees Diamond
Size
10/07
Material
Carbide
Max. Bore Dia.
8 x D
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
261326 10/07
Zoro #
G814820402
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Overall Length
125 mm
Size
10/07
Max. Bore Dia.
8 x D
Shank Dia.
10 mm
Clamping Height
9 mm
Min. Pre-Drill Diameter Dmin
13 mm
Neck Width
6.3 mm
Head Length
18 mm
Insert Size
7 mm
Details
Item
Boring bar
Insert Shape
35 Degrees Diamond
Material
Carbide
Shank Type
Boring bar
Application
Internal longitudinal turning
Center Offset
1.5 mm
ISO Number
E10K SVJCR/L07
Setting Angle
142 Angle
Coolant Through
Yes
Cutting Direction
Right-Hand
Description
Boring bar carbide 10/07 mmStandard: Works standard Shank Diameters: 10 mm ISO code toolholder: E10K SVJCR/L07 Setting angle k: 142 degrees suitable indexable insert: VC 0702 Minimum pre-drill Diametermin: 13 mm Center offset L3: 1.5 mm
