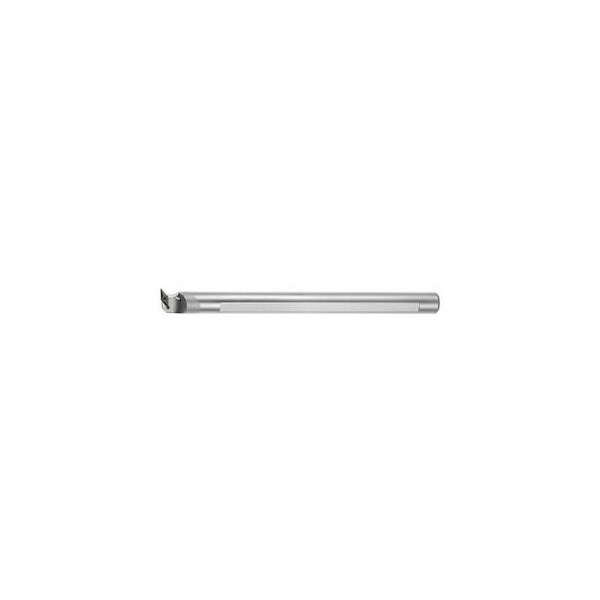

Carbide Boring Bar, E16R SVUCL11, for VC 2 Inserts, Left-Hand
Mfr # 261329 16/11
Zoro # G414820307
product price: $550.99
/ea
Free Shipping & Returns
Key Features
Size
16/11
Material
Carbide
Min. Pre-Drill Diameter Dmin
21 mm
Cutting Direction
Left-Hand
Clamping Height
15 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261329 16/11
Zoro #
G414820307
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Size
16/11
Min. Pre-Drill Diameter Dmin
21 mm
Clamping Height
15 mm
Overall Length
200 mm
Insert Size
11 mm
Max. Bore Dia.
8 x D
Head Length
16.5 mm
Shank Dia.
16 mm
Details
Material
Carbide
Cutting Direction
Left-Hand
Center Offset
11 mm
Application
Internal longitudinal turning
Setting Angle
93 Angle
ISO Number
E16R SVUCR/L11
Shank Type
Boring bar
Standards
DIN 8024
Item
Boring bar
Insert Shape
35 Degrees Diamond
Coolant Through
Yes
Description
Boring bar carbide 16/11 mmStandard: DIN 8024 Shank Diameters: 16 mm ISO code toolholder: E16R SVUCR/L11 Setting angle k: 93 degrees suitable indexable insert: VC 1103 Minimum pre-drill Diametermin: 21 mm Center offset L3: 11 mm
