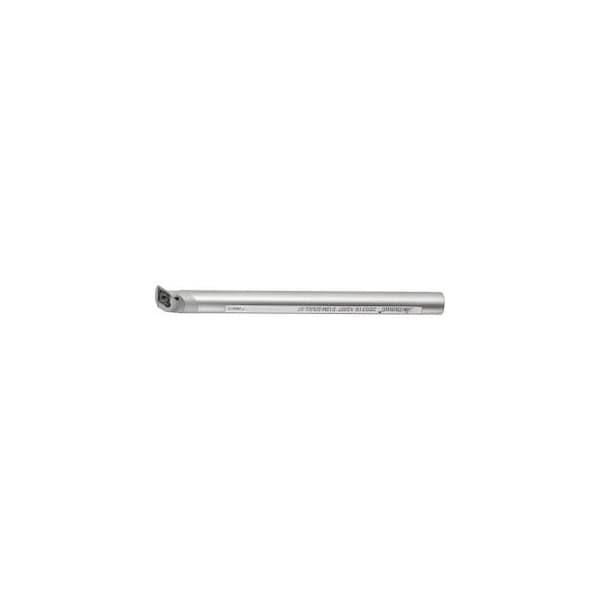

Carbide Boring Bar, E20S SDUCL11, for DC 3 Inserts, Left-Hand
Mfr # 260319 20/11
Zoro # G914821408
product price: $954.99
/ea
Free Shipping & Returns
Key Features
Shank Type
Boring bar
Cutting Direction
Left-Hand
Application
Internal longitudinal turning
Standards
DIN 8024
Material
Carbide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260319 20/11
Zoro #
G914821408
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Max. Bore Dia.
8 x D
Free Length
120 mm
Clamping Height
18.9 mm
Min. Pre-Drill Diameter Dmin
23.5 mm
Shank Dia.
20 mm
Size
20/11
Overall Length
250 mm
Insert Size
11 mm
Details
Shank Type
Boring bar
Cutting Direction
Left-Hand
Application
Internal longitudinal turning
Standards
DIN 8024
Material
Carbide
Setting Angle
93 Angle
Center Offset
13.1 mm
Item
Boring bar
Coolant Through
Yes
ISO Number
E20S SDUCR/L11
Insert Assignment
right-hand and neutral
Insert Shape
55 Degrees Diamond
Description
Boring bar carbide 20/11 mmStandard: DIN 8024 Shank Diameters: 20 mm ISO code toolholder: E20S SDUCR/L11 Setting angle k: 93 degrees suitable indexable insert: DC 11T3 Minimum pre-drill Diametermin: 23.5 mm Center offset L3: 13.1 mm
