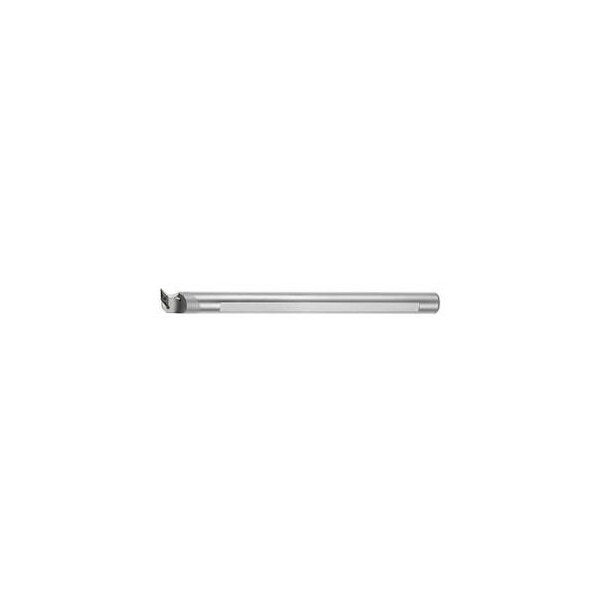

Carbide Boring Bar, E25S SVUCL11, for VC 2 Inserts, Left-Hand
Mfr # 261329 25/11
Zoro # G414820475
product price: $1,929.99
/ea
Free Shipping & Returns
Key Features
Size
25/11
Center Offset
17 mm
Cutting Direction
Left-Hand
Insert Shape
35 Degrees Diamond
Clamping Height
23 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261329 25/11
Zoro #
G414820475
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Size
25/11
Clamping Height
23 mm
Shank Dia.
25 mm
Head Length
23 mm
Insert Size
11 mm
Max. Bore Dia.
8 x D
Overall Length
250 mm
Min. Pre-Drill Diameter Dmin
31.5 mm
Details
Center Offset
17 mm
Cutting Direction
Left-Hand
Insert Shape
35 Degrees Diamond
Application
Internal longitudinal turning
Item
Boring bar
Shank Type
Boring bar
Material
Carbide
Standards
DIN 8024
Setting Angle
93 Angle
ISO Number
E25S SVUCR/L11
Coolant Through
Yes
Description
Boring bar carbide 25/11 mmStandard: DIN 8024 Shank Diameters: 25 mm ISO code toolholder: E25S SVUCR/L11 Setting angle k: 93 degrees suitable indexable insert: VC 1103 Minimum pre-drill Diametermin: 31.5 mm Center offset L3: 17 mm
