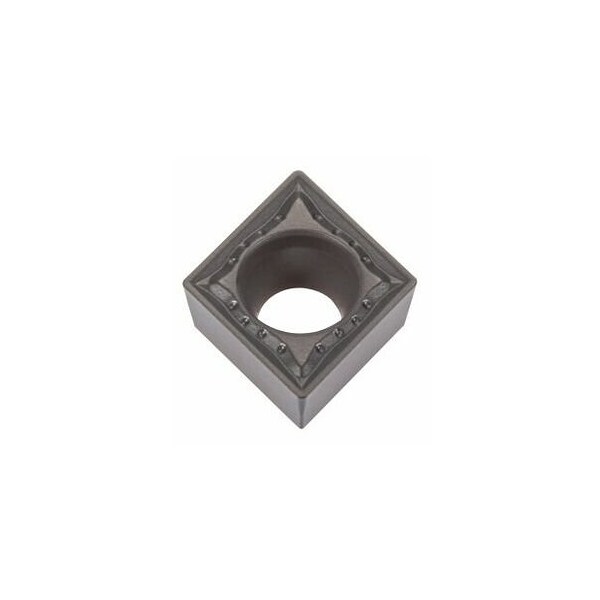

Carbide Turning Insert, Diamond, CCMT060202, for Stainless Steel
Mfr # 260140 HB7130-2
Zoro # G314821848
product price: $12.15
/eaSold in multiples of 10 for $121.50
Key Features
Corner Radius
0.2 mm
Insert Thickness
1.5 mm
Insert Application
Finishing
Inscribed Circle
2
Insert Style
CCMT
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260140 HB7130-2
Zoro #
G314821848
UPC #
-
Country of Origin
Japan
Dimensions
Corner Radius
0.2 mm
Insert Thickness
1.5 mm
Insert Size
60202
Min. Cutting Depth (ap min)
0.15 mm
Max. Cutting Depth (ap max)
2 mm
Cutting Depth
0.2 mm
Details
Insert Application
Finishing
Inscribed Circle
2
Insert Style
CCMT
Chip-Breaker
VM
Cutting Conditions
Slightly Interrupted
Grade
HB7130-2
Insert Material
Carbide
Workpiece Material
Stainless Steel
Tolerance
Stainless Steel
No. of Edges
2
Insert Shape
80 Degrees Diamond
Item
Indexable Insert for Turning
ISO Number
CCMT 060202
Description
CC.T 060202 HB7130-2 Grade: HB7130-2 Chip breaker: VM Tolerance: M Cutting depth ap: 0.2 4 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 70 240 m/min
