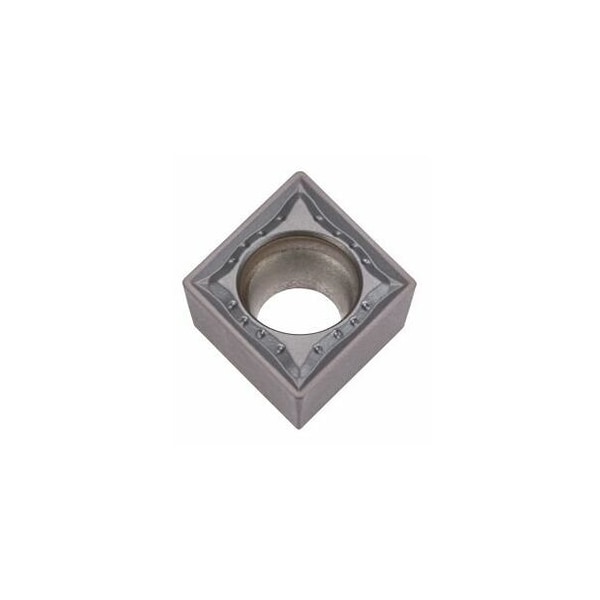

Carbide Turning Insert, Diamond, CCMT060202, for Stainless Steel
Mfr # 260140 HB7140-2
Zoro # G614821852
product price: $12.15
/eaSold in multiples of 10 for $121.50
Key Features
Insert Application
Finishing
Corner Radius
0.2 mm
ISO Number
CCMT 060202
Cutting Conditions
Heavily Interrupted
No. of Edges
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260140 HB7140-2
Zoro #
G614821852
UPC #
-
Country of Origin
Japan
Dimensions
Corner Radius
0.2 mm
Max. Cutting Depth (ap max)
2 mm
Insert Size
60202
Min. Cutting Depth (ap min)
0.15 mm
Insert Thickness
1.5 mm
Cutting Depth
0.2 mm
Details
Insert Application
Finishing
ISO Number
CCMT 060202
Cutting Conditions
Heavily Interrupted
No. of Edges
2
Grade
HB7140-2
Insert Style
CCMT
Inscribed Circle
2
Insert Material
Carbide
Item
Indexable Insert for Turning
Workpiece Material
Stainless Steel
Insert Shape
80 Degrees Diamond
Chip-Breaker
VM
Tolerance
Stainless Steel
Coating
coated
Description
CC.T 060202 HB7140-2 Grade: HB7140-2 Chip breaker: VM Tolerance: M Cutting depth ap: 0.2 4 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 60 200 m/min
