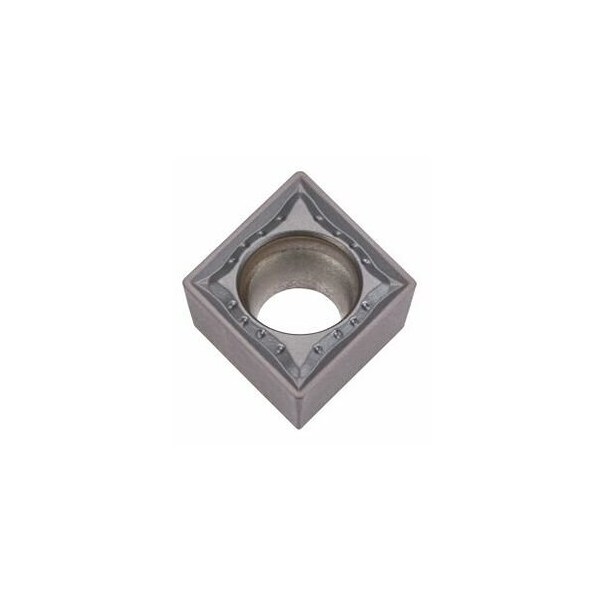

Carbide Turning Insert, Diamond, CCMT09T302, for Stainless Steel
Mfr # 260148 HB7140-2
Zoro # G214821702
product price: $10.35
/eaSold in multiples of 10 for $103.50
Key Features
Cutting Conditions
Heavily Interrupted
ISO Number
CCMT09T302
Cutting Depth
0.2 mm
Inscribed Circle
3
Insert Material
Carbide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260148 HB7140-2
Zoro #
G214821702
UPC #
-
Country of Origin
Japan
Dimensions
Cutting Depth
0.2 mm
Insert Thickness
2.5 mm
Max. Cutting Depth (ap max)
3.25 mm
Min. Cutting Depth (ap min)
0.15 mm
Corner Radius
0.2 mm
Insert Size
09T302
Details
Cutting Conditions
Heavily Interrupted
ISO Number
CCMT09T302
Inscribed Circle
3
Insert Material
Carbide
Insert Style
CCMT
Tolerance
Stainless Steel
Insert Application
Finishing
Coating
coated
Workpiece Material
Stainless Steel
Chip-Breaker
VM
Item
Indexable Insert for Turning
No. of Edges
2
Insert Shape
80 Degrees Diamond
Grade
HB7140-2
Description
CC.T 09T302 HB7140-2 Grade: HB7140-2 Chip breaker: VM Tolerance: M Cutting depth ap: 0.2 4 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 60 200 m/min
