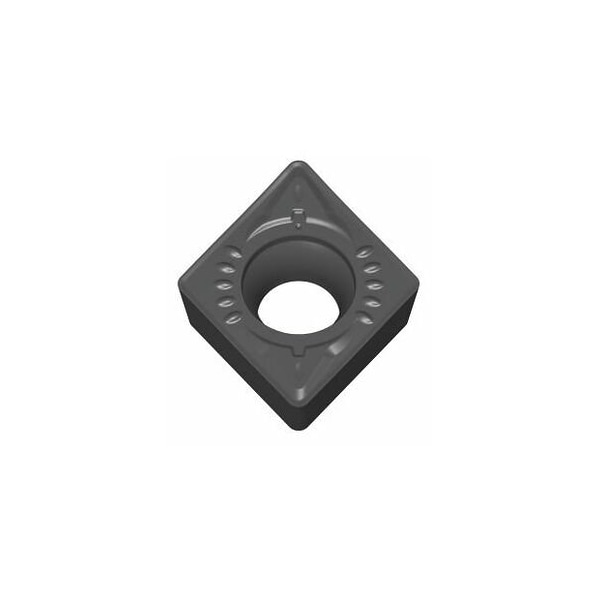

Carbide Turning Insert, Diamond, CCMT32.51 / CCMT09T304, for Cast Iron
Mfr # 260150 HB7210-1
Zoro # G014821544
product price: $10.35
/eaSold in multiples of 10 for $103.50
Key Features
Coating
TiCN
Grade
HB7210-1
Tolerance
Stainless Steel
Cutting Conditions
Slightly Interrupted
Inscribed Circle
3
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260150 HB7210-1
Zoro #
G014821544
UPC #
-
Country of Origin
Austria
Dimensions
Min. Cutting Depth (ap min)
0.2 mm
Corner Radius
0.4 mm
Max. Cutting Depth (ap max)
2.5 mm
Insert Thickness
2.5 mm
Cutting Depth
0.2 mm
Details
Coating
TiCN
Grade
HB7210-1
Tolerance
Stainless Steel
Cutting Conditions
Slightly Interrupted
Inscribed Circle
3
Insert Application
Roughing-Finishing
Insert Style
CCMT
Chip-Breaker
GM
Workpiece Material
Cast Iron
ISO Number
CCMT 09T304
No. of Edges
2
Item
Indexable Insert for Turning
Insert Shape
80 Degrees Diamond
Insert Material
Carbide
Description
CC.T 09T304 HB7210-1 Grade: HB7210-1 Chip breaker: GM Tolerance: M Cutting depth ap: 0.2 2.5 mm Feed f: 0.1 0.25 mm/rev. Cutting speed vc main application: 100 450 m/min
