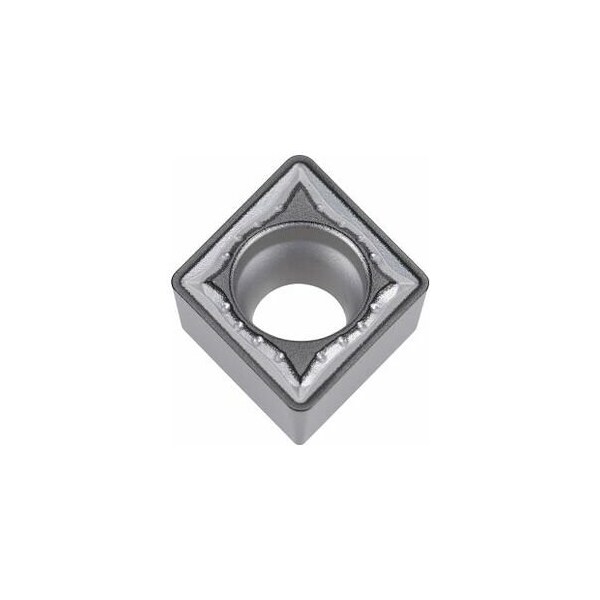

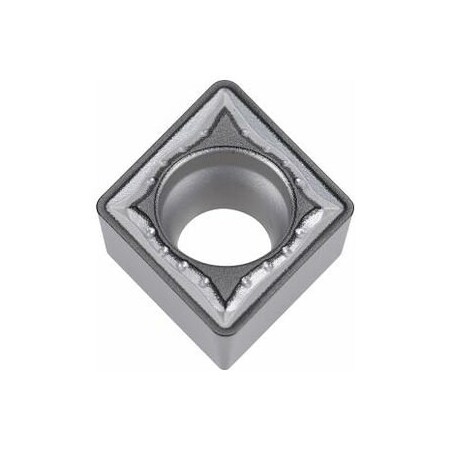

Carbide Turning Insert, Diamond, CCMT32.52 / CCMT09T308, for Stainless Steel (Discontinued)
- Mfr # 260152 HB7120-1
- Zoro # G414822929
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
260152 HB7120-1
Zoro #
G414822929
UPC #
-
Country of Origin
Japan
Dimensions
Insert Thickness
2.5 mm
Max. Cutting Depth (ap max)
3.25 mm
Cutting Depth
0.2 mm
Min. Cutting Depth (ap min)
0.55 mm
Corner Radius
0.8 mm
Details
Grade
HB7120-1
No. of Edges
2
ISO Number
CCMT 09T308
Cutting Conditions
Continuous
Insert Material
Carbide
Workpiece Material
Stainless Steel
Tolerance
Stainless Steel
Insert Style
CCMT
Insert Application
Semi-roughing
Item
Indexable Insert for Turning
Inscribed Circle
3
Chip-Breaker
VM
Insert Shape
80 Degrees Diamond
Description
CC.T 09T308 HB7120-1 Grade: HB7120-1 Chip breaker: VM Tolerance: M Cutting depth ap: 0.2 4 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 80 260 m/min
