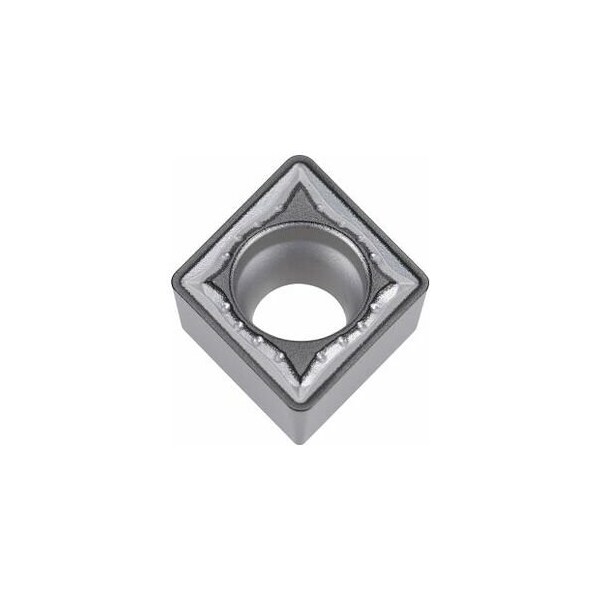

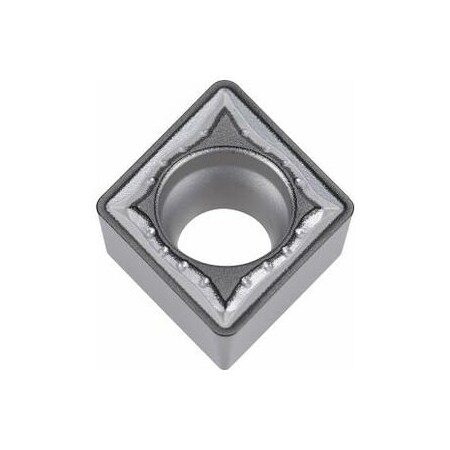

Carbide Turning Insert, Diamond, CCMT431 / CCMT120404, for Stainless Steel (Discontinued)
- Mfr # 260158 HB7120-1
- Zoro # G714822797
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
260158 HB7120-1
Zoro #
G714822797
UPC #
-
Country of Origin
Japan
Dimensions
Corner Radius
0.4 mm
Insert Size
431
Max. Cutting Depth (ap max)
4.25 mm
Insert Thickness
3 mm
Min. Cutting Depth (ap min)
0.25 mm
Cutting Depth
0.2 mm
Details
Chip-Breaker
VM
Grade
HB7120-1
Insert Shape
80 Degrees Diamond
Inscribed Circle
4
Insert Material
Carbide
Workpiece Material
Stainless Steel
Insert Application
Roughing-Finishing
No. of Edges
2
Item
Indexable Insert for Turning
Tolerance
Stainless Steel
ISO Number
CCMT 120404
Cutting Conditions
Continuous
Insert Style
CCMT
Description
CC.T 120404 HB7120-1 Grade: HB7120-1 Chip breaker: VM Tolerance: M Cutting depth ap: 0.2 4 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 80 260 m/min
