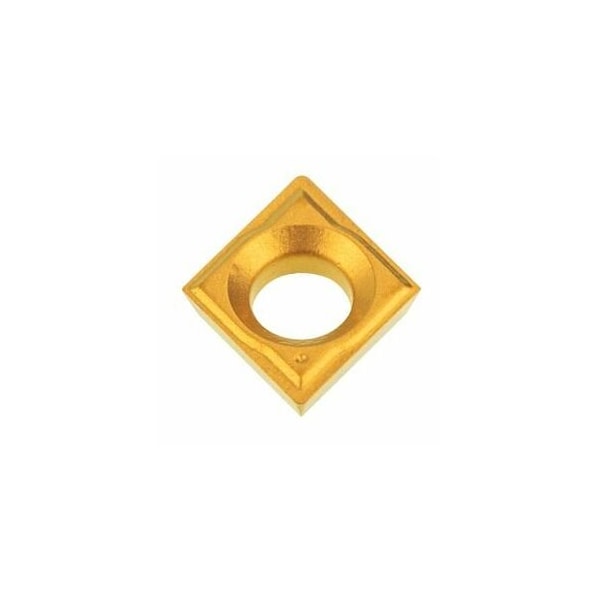

Carbide Turning Insert, Diamond, CDCTS40101, for Steel
Mfr # 268520 HB7035
Zoro # G314821589
product price: $17.65
/eaSold in multiples of 10 for $176.50
Key Features
Cutting Conditions
Continuous
Insert Application
Finishing
Min. Cutting Depth (ap min)
0.05 mm
Coating
TiN
Inscribed Circle
1.2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
268520 HB7035
Zoro #
G314821589
UPC #
-
Country of Origin
Austria
Dimensions
Min. Cutting Depth (ap min)
0.05 mm
Cutting Depth
0.05 mm
Corner Radius
0.1 mm
Insert Size
S40101
Insert Thickness
1 mm
Max. Cutting Depth (ap max)
0.23 mm
Details
Cutting Conditions
Continuous
Insert Application
Finishing
Coating
TiN
Inscribed Circle
1.2
Insert Material
Carbide
Item
Indexable Insert for Turning
ISO Number
CDCT S40101
Chip-Breaker
SF
Insert Shape
80 Degrees Diamond
Grade
HB7035
Workpiece Material
Steel
Secondary Application
Cast Iron
No. of Edges
2
Insert Style
CDCT
Description
CDCT S40101 HB7035 Grade: HB7035 Chip breaker: SF Cutting depth ap: 0.05 0.23 mm Feed f: 0.03 0.25 mm/rev. Cutting speed vc main application: 60 150 m/min Cutting speed vc secondary application: 60 150 m/min
