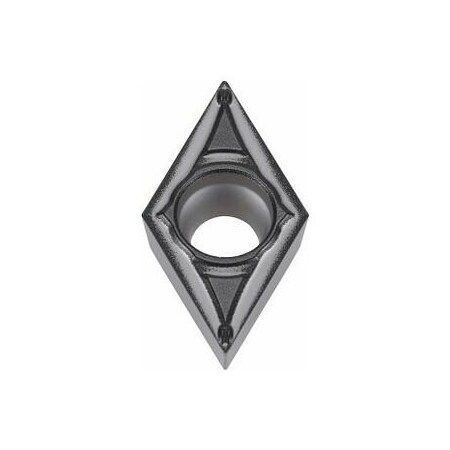

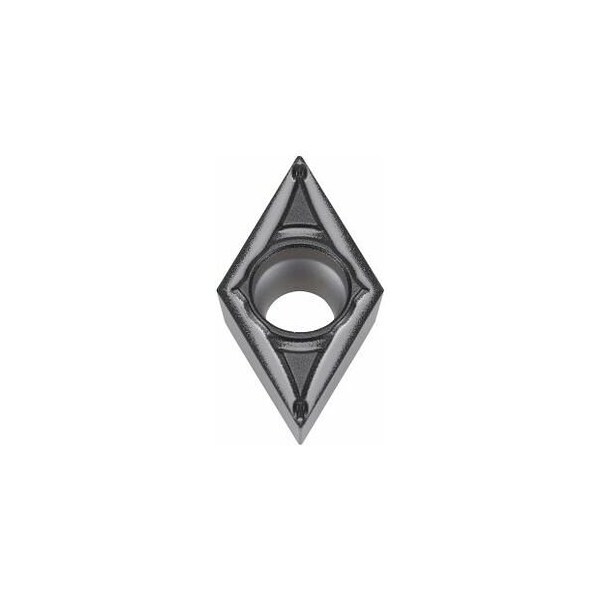

Carbide Turning Insert, Diamond, DCMT21.51 / DCMT070204, for Stainless Steel (Discontinued)
- Mfr # 260353 HB7120-1
- Zoro # G914822535
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260353 HB7120-1
Zoro #
G914822535
UPC #
-
Country of Origin
Japan
Dimensions
Max. Cutting Depth (ap max)
1.75 mm
Cutting Depth
0.2 mm
Insert Thickness
1.5 mm
Min. Cutting Depth (ap min)
0.25 mm
Corner Radius
0.4 mm
Details
ISO Number
DCMT 070204
No. of Edges
2
Workpiece Material
Stainless Steel
Grade
HB7120-1
Tolerance
Stainless Steel
Insert Application
Finishing
Insert Style
DCMT
Item
Indexable Insert for Turning
Cutting Conditions
Continuous
Inscribed Circle
2
Insert Shape
55 Degrees Diamond
Insert Material
Carbide
Chip-Breaker
VS
Description
DC.T 070204 HB7120-1 Grade: HB7120-1 Chip breaker: VS Tolerance: M Cutting depth ap: 0.2 1.5 mm Feed f: 0.1 0.3 mm/rev. Cutting speed vc main application: 90 290 m/min
