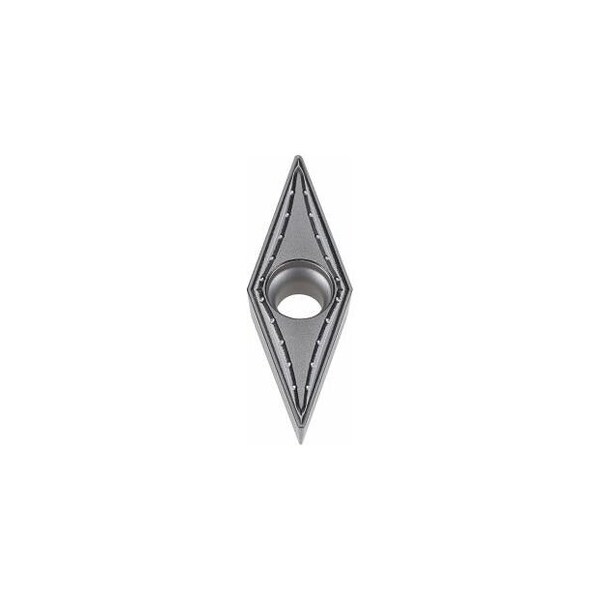

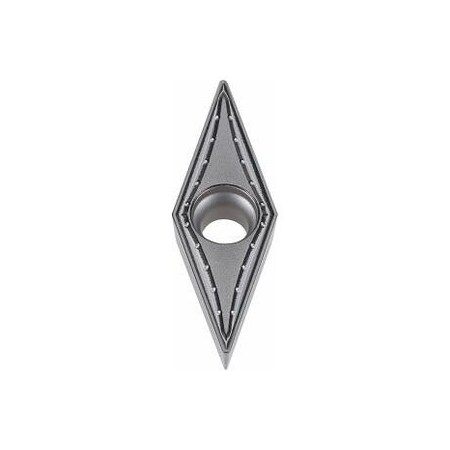

Carbide Turning Insert, Diamond, VBMT332 / VBMT160408, for Stainless Steel (Discontinued)
- Mfr # 261234 HB7120-1
- Zoro # G214821610
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261234 HB7120-1
Zoro #
G214821610
UPC #
-
Country of Origin
Japan
Dimensions
Insert Size
332
Cutting Depth
0.5 mm
Corner Radius
0.8 mm
Max. Cutting Depth (ap max)
2.5 mm
Insert Thickness
3 mm
Min. Cutting Depth (ap min)
0.55 mm
Details
Cutting Conditions
Continuous
ISO Number
VBMT 160408
Item
Indexable Insert for Turning
Workpiece Material
Stainless Steel
Insert Shape
35 Degrees Diamond
No. of Edges
2
Grade
HB7120-1
Insert Application
Semi-roughing
Inscribed Circle
3
Chip-Breaker
VM
Tolerance
Stainless Steel
Insert Style
VBMT
Insert Material
Carbide
Description
VB.T 160408 HB7120-1 Grade: HB7120-1 Chip breaker: VM Tolerance: M Cutting depth ap: 0.5 2.5 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 80 260 m/min
