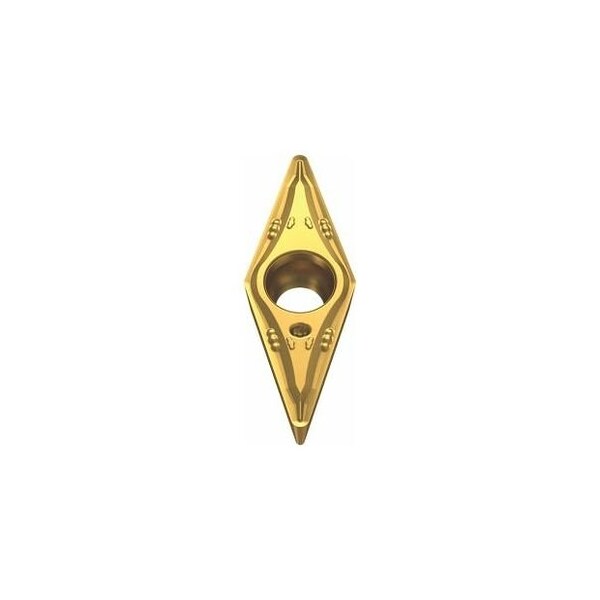

Carbide Turning Insert, Diamond, VBMT332 / VBMT160408, for Universal Applications
Mfr # 261234 HB725-1
Zoro # G614821494
product price:Â $13.79
/ea
Sold in multiples of 10 for $137.90
Key Features
Insert Shape
35 Degrees Diamond
Insert Style
VBMT
Inscribed Circle
3
Insert Size
332
Chip-Breaker
UM1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
261234 HB725-1
Zoro #
G614821494
UPC #
-
Country of Origin
Czechia
Dimensions
Insert Size
332
Corner Radius
0.8 mm
Min. Cutting Depth (ap min)
0.55 mm
Max. Cutting Depth (ap max)
2.5 mm
Cutting Depth
0.2 mm
Insert Thickness
3 mm
Details
Item
Indexable Insert for Turning
Insert Shape
35 Degrees Diamond
Insert Style
VBMT
Inscribed Circle
3
Chip-Breaker
UM1
Grade
HB725-1
Insert Material
Carbide
Insert Application
Finishing
ISO Number
VBMT 160408
Cutting Conditions
Slightly Interrupted
Workpiece Material
Universal
Tolerance
Stainless Steel
No. of Edges
2
Description
VB.T 160408 HB725-1 Grade: HB725-1 Chip breaker: UM1 Tolerance: M Cutting depth ap: 0.2 4 mm Feed f: 0.05 0.5 mm/rev. Cutting speed vc main application: 50 250 m/min
