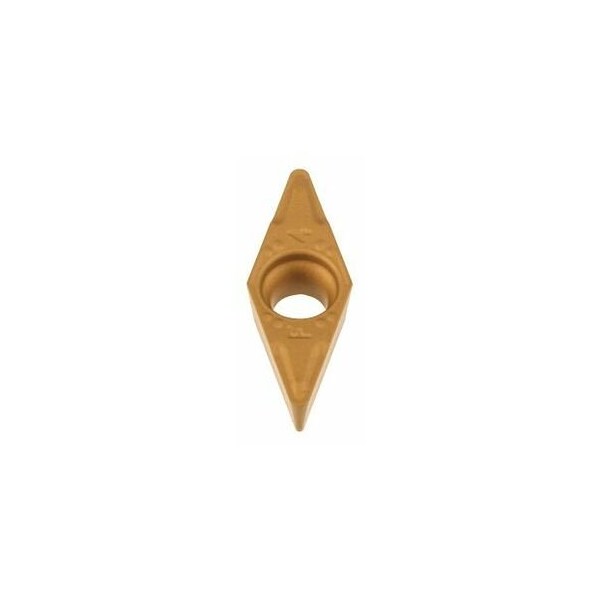

Carbide Turning Insert, Diamond, VCMT070204, for Steel
Mfr # 261362 HB7025-1
Zoro # G614822897
product price: $17.55
/eaSold in multiples of 10 for $175.50
Key Features
Insert Application
Finishing
Insert Material
Carbide
Max. Cutting Depth (ap max)
1 mm
Workpiece Material
Steel
Inscribed Circle
7 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
261362 HB7025-1
Zoro #
G614822897
UPC #
-
Country of Origin
Austria
Dimensions
Max. Cutting Depth (ap max)
1 mm
Insert Size
70204
Min. Cutting Depth (ap min)
0.25 mm
Corner Radius
0.4 mm
Cutting Depth
0.05 mm
Insert Thickness
1.5 mm
Details
Insert Application
Finishing
Insert Material
Carbide
Workpiece Material
Steel
Inscribed Circle
7 mm
ISO Number
VCMT 070204
Chip-Breaker
SF
Insert Style
VCMT
Cutting Conditions
Slightly Interrupted
Tolerance
Stainless Steel
Insert Shape
35 Degrees Diamond
Grade
HB7025-1
Item
Indexable Insert for Turning
No. of Edges
2
Description
VC.T 070204 HB7025-1 Grade: HB7025-1 Chip breaker: SF Tolerance: M Cutting depth ap: 0.05 0.4 mm Feed f: 0.03 0.2 mm/rev. Cutting speed vc main application: 80 190 m/min
