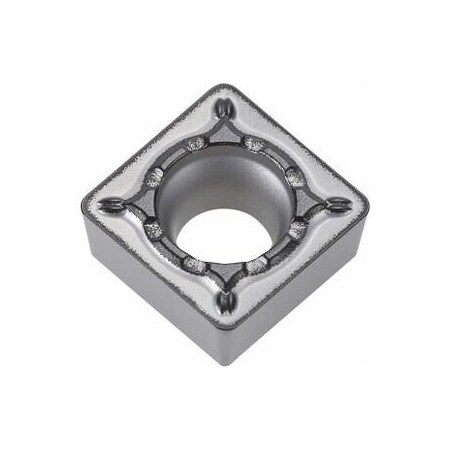

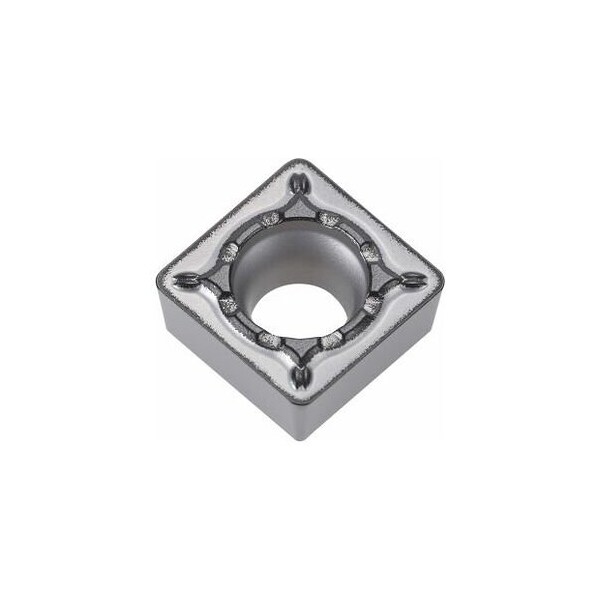

Carbide Turning Insert, Square, SCMT32.51 / SCMT09T304, for Stainless Steel (Discontinued)
- Mfr # 260742 HB7120-1
- Zoro # G614821760
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
260742 HB7120-1
Zoro #
G614821760
UPC #
-
Country of Origin
Japan
Dimensions
Min. Cutting Depth (ap min)
0.25 mm
Cutting Depth
0.2 mm
Corner Radius
0.4 mm
Insert Thickness
2.5 mm
Max. Cutting Depth (ap max)
3.25 mm
Details
Workpiece Material
Stainless Steel
Chip-Breaker
VS
Insert Style
SCMT
Item
Indexable Insert for Turning
Inscribed Circle
3
No. of Edges
4
ISO Number
SCMT 09T304
Insert Material
Carbide
Insert Application
Finishing
Insert Shape
Square
Cutting Conditions
Continuous
Grade
HB7120-1
Description
SCMT 09T304 HB7120-1 Corner radius: 0.4 mm Grade: HB7120-1 Chip breaker: VS Cutting depth ap: 0.2 1.5 mm Feed f: 0.1 0.3 mm/rev. Cutting speed vc main application: 90 290 m/min
