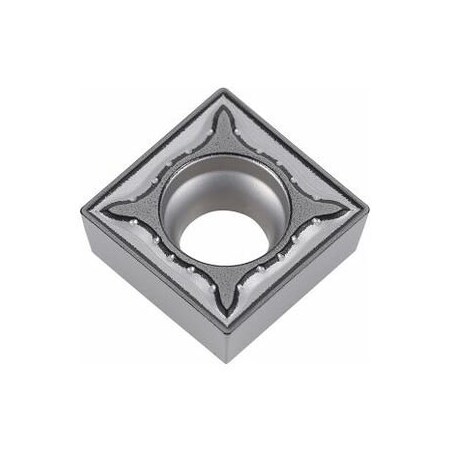

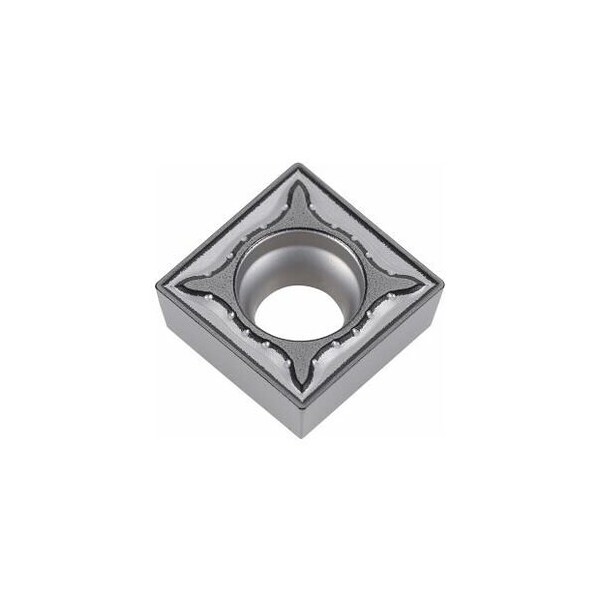

Carbide Turning Insert, Square, SCMT32.51 / SCMT09T304, for Stainless Steel (Discontinued)
- Mfr # 260762 HB7120-1
- Zoro # G614821531
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
260762 HB7120-1
Zoro #
G614821531
UPC #
-
Country of Origin
Japan
Dimensions
Corner Radius
0.4 mm
Max. Cutting Depth (ap max)
3.25 mm
Cutting Depth
0.5 mm
Insert Thickness
2.5 mm
Min. Cutting Depth (ap min)
0.25 mm
Details
Workpiece Material
Stainless Steel
Insert Application
Semi-roughing
Item
Indexable Insert for Turning
Cutting Conditions
Continuous
ISO Number
SCMT 09T304
Insert Material
Carbide
Insert Shape
Square
Tolerance
Stainless Steel
Inscribed Circle
3
Chip-Breaker
VM
Grade
HB7120-1
No. of Edges
4
Insert Style
SCMT
Description
SC.T 09T304 HB7120-1 Corner radius: 0.4 mm Grade: HB7120-1 Chip breaker: VM Tolerance: M Cutting depth ap: 0.5 2.5 mm Feed f: 0.1 0.4 mm/rev.
