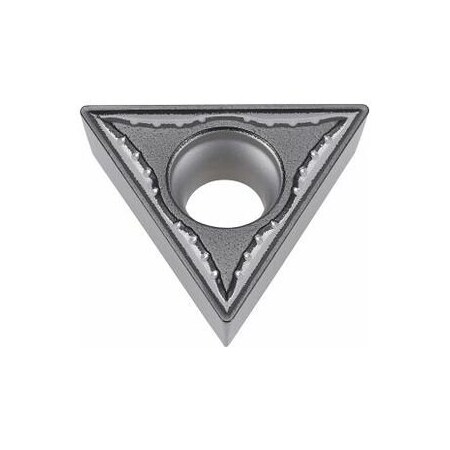

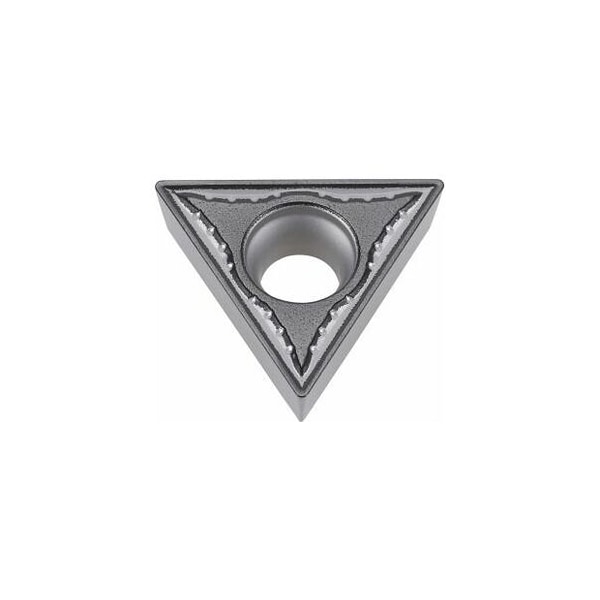

Carbide Turning Insert, Triangle, TCMT32.52 / TCMT16T308, for Stainless Steel (Discontinued)
- Mfr # 260988 HB7120-1
- Zoro # G214822563
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
260988 HB7120-1
Zoro #
G214822563
UPC #
-
Country of Origin
Japan
Dimensions
Min. Cutting Depth (ap min)
0.55 mm
Insert Thickness
2.5 mm
Corner Radius
0.8 mm
Max. Cutting Depth (ap max)
4 mm
Cutting Depth
0.5 mm
Details
Cutting Conditions
Continuous
No. of Edges
3
Item
Indexable Insert for Turning
Grade
HB7120-1
Insert Shape
Triangle
Workpiece Material
Stainless Steel
Insert Style
TCMT
Insert Material
Carbide
Chip-Breaker
VM
Insert Application
Roughing-Finishing
ISO Number
TCMT 16T308
Inscribed Circle
3
Tolerance
Stainless Steel
Description
TCMT 16T308 HB7120-1 Grade: HB7120-1 Chip breaker: VM Tolerance: M Cutting depth ap: 0.5 2.5 mm Feed f: 0.1 0.4 mm/rev. Cutting speed vc main application: 80 260 m/min
