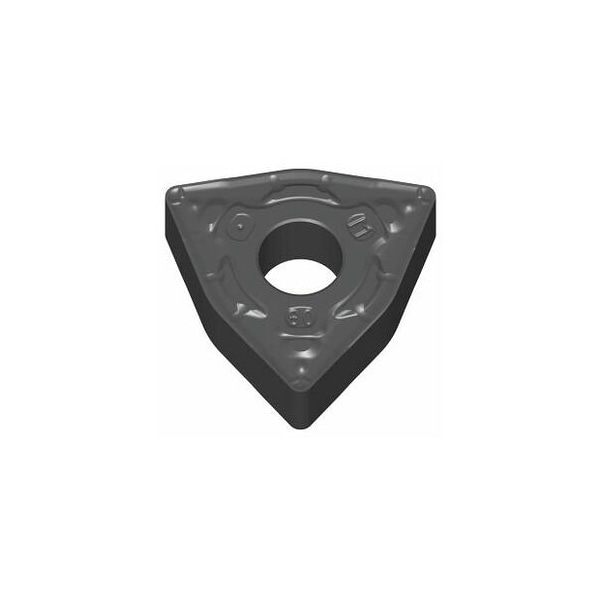

Carbide Turning Insert, Trigon, WNMG433 / WNMG080412, for Cast Iron
Mfr # 252072 HB7210-1
Zoro # G714824104
product price:Â
$
10.39
/ea
Sold in multiples of 10 for $103.90
Key Features
Insert Shape
Trigon
Insert Style
WNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
GM
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 252072 HB7210-1
- Zoro #
- G714824104
- UPC #
- -
- Country of Origin
- Austria
Dimensions
- Insert Size
- 433
- Corner Radius
- 1.2 mm
- Insert Thickness
- 3
- Depth of Cut max
- 6.5 mm
- Depth of Cut
- 0.4 mm
Details
- Insert Shape
- Trigon
- Insert Style
- WNMG
- Inscribed Circle
- 4
- Chip-Breaker
- GM
- Grade
- HB7210-1
- Insert Material
- Carbide
- Insert Application
- Roughing-Finishing
- ISO Number
- WNMG 080412
- Number of Inserts
- 6
- Primary Material Application
- Cast Iron
- Feed
- 0.3 mm/rev.
- Type
- Indexable insert for turning
- Coating
- TiCN
- Cutting speed
- 100 m/min
Description
WNMG 080412 HB7210-1 Grade: HB7210-1 Chip breaker: GM Tolerance: M Cutting depth ap: 0.4 6.5 mm Feed f: 0.3 0.7 mm/rev. Cutting speed vc main application: 100 450 m/min
