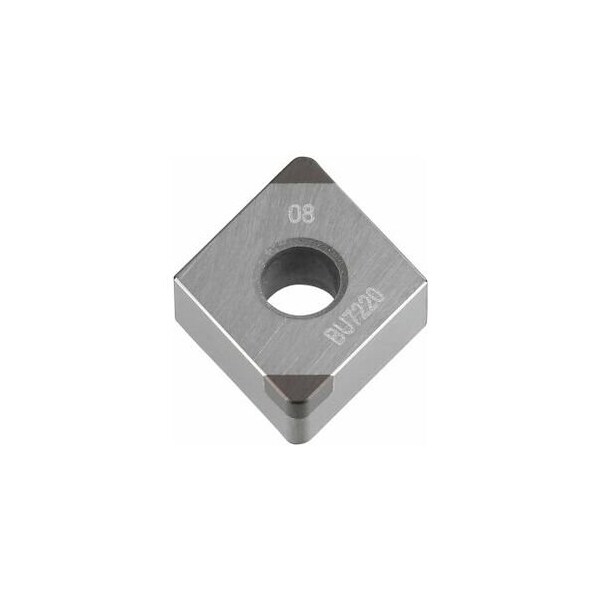

CBN Turning Insert, Diamond, CNGA32.52 / CNGA09T308, for Cast Iron
- Mfr # 255406 G
- Zoro # G914824126
product price:Â
$
84.79
/ea
Key Features
Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
3
Insert Size
32.52
Insert Application
Finishing
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 255406 G
- Zoro #
- G914824126
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Insert Size
- 32.52
- Insert Thickness
- 2.5
- Depth of Cut
- 0.05 mm
- Depth of Cut max
- 0.2 mm
- Corner Radius
- 0.8 mm
Details
- Insert Shape
- Diamond
- Insert Style
- CNGA
- Inscribed Circle
- 3
- Insert Application
- Finishing
- ISO Number
- CNGA 09T308
- Grade
- BU7220
- Number of Inserts
- 2
- Type
- Indexable insert for turning
- Cutting speed
- 90 m/min
- Insert Material
- CBN
- Feed
- 0.05 mm/rev.
Description
Fitted with 2 cutters. Description: New type of CBN with a balanced combination wear-resistance and tensile strength for general-purpose use in hardened steel up to 67 HRC in combination with a special constitution. For use both in continuous cutting and also in slightly interrupted and heavily interrupted cutting. Corner radius: 0.8 mm Grade: BU7220 Cutting depth ap: 0.05 0.2 mm Feed f: 0.05 0.15 mm/rev. Cutting speed vc main application: 90 140 m/min Cutting edge G
