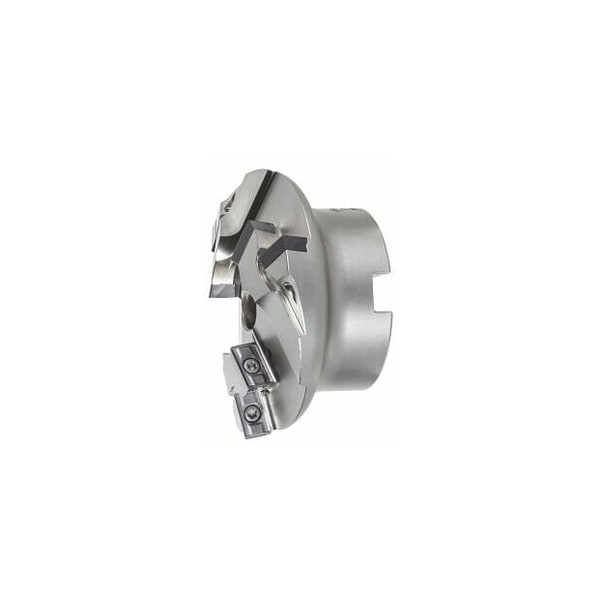

Chamfer Mill, with Bore, 15 Degrees
- Mfr # 215700 15
- Zoro # G616115492
product price:Â
$
778.99
/ea
Free Shipping & Returns
Key Features
Overall Length
50 mm
Coolant Through
Yes
Insert Screw
219811 (15IP; 5.0 Nm)
Large End Dia.
94 mm
Shank Type
with bore
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 215700 15
- Zoro #
- G616115492
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 50 mm
- Large End Dia.
- 94 mm
- Flute Length
- 8 mm
- Achievable Chamfer Length
- 30 mm
- Achievable Chamfer Height
- 8 mm
- Mounting Bore Dia.
- 27 mm
- Achievable Chamfer Width
- 29.5 mm
Details
- Item
- Indexable end mill
- Coolant Through
- Yes
- Chamfer Angle
- 15 Degrees
- Insert Screw
- 219811 (15IP; 5.0 Nm)
- Shank Type
- with bore
- Tool Exchange
- PowerCard
- Number of Effective Inserts
- 3
- Number of Indexable Inserts
- 6
Description
Note: - Recommended milling inserts for chamfering: No. 215720- 215724- 215728- 215744- 215758. - If other milling inserts are used- the tool life may be less and surface quality may suffer. - Use GARANT torque screwdriver TQ No. 211750 size 5.0 with bit No. 674252 size 15IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 6 Overall length Ltot: 50 mm smallestD: 35.4 mm largestD1: 94 mm achievable chamfer width b: 29.5 mm
