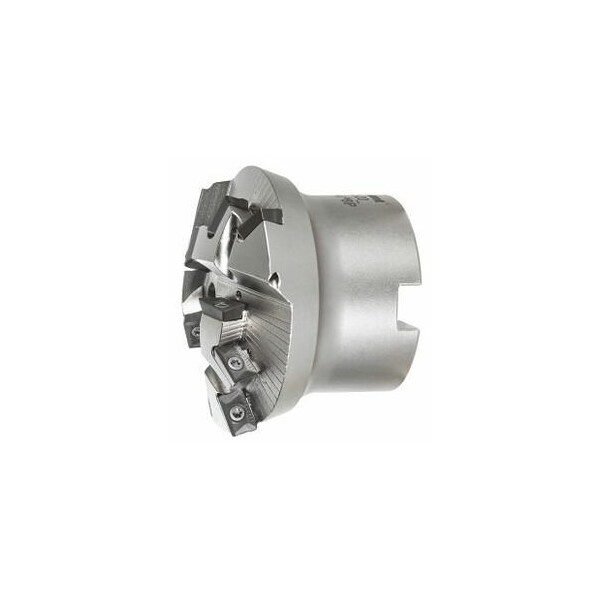

Chamfer Mill, with Bore, 20 Degrees
Mfr # 215795 20
Zoro # G416115494
product price: $861.99
/ea
Free Shipping & Returns
Key Features
Insert Screw
219814 (8IP; 1.2 Nm)
Shank Type
with bore
Coolant Through
Yes
Large End Dia.
69 mm
Overall Length
52 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215795 20
Zoro #
G416115494
UPC #
-
Country of Origin
Germany
Dimensions
Large End Dia.
69 mm
Overall Length
52 mm
Mounting Bore Dia.
22 mm
Flute Length
9 mm
Achievable Chamfer Length
27.5 mm
Achievable Chamfer Height
9 mm
Achievable Chamfer Width
26 mm
Details
Insert Screw
219814 (8IP; 1.2 Nm)
Item
Indexable end mill
Shank Type
with bore
Chamfer Angle
20°
Coolant Through
Yes
Number of Effective Inserts
3
Tool Exchange
PowerCard
Number of Indexable Inserts
9
Description
Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 9 Overall length Ltot: 52 mm smallestD: 17 mm largestD1: 69 mm achievable chamfer width b: 26 mm
