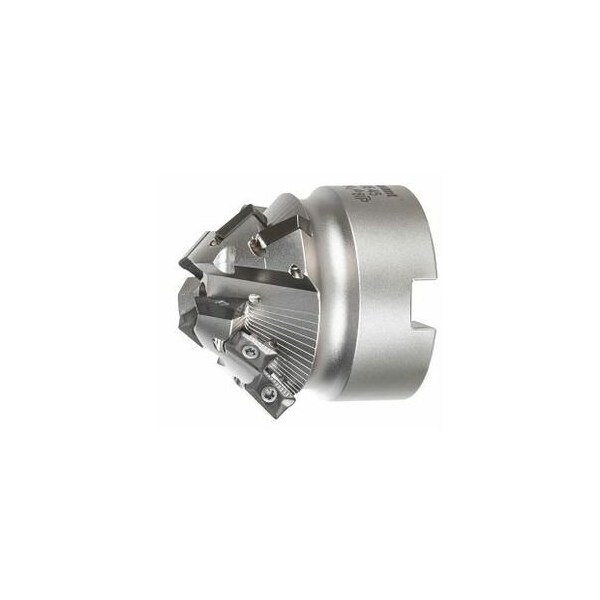

Chamfer Mill, with Bore, 45 Degrees
Mfr # 215795 45
Zoro # G516115547
product price: $861.99
/ea
Free Shipping & Returns
Key Features
Shank Type
with bore
Coolant Through
Yes
Large End Dia.
56 mm
Overall Length
52 mm
Insert Screw
219814 (8IP; 1.2 Nm)
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215795 45
Zoro #
G516115547
UPC #
-
Country of Origin
Germany
Dimensions
Large End Dia.
56 mm
Overall Length
52 mm
Achievable Chamfer Width
17.8 mm
Achievable Chamfer Length
27.5 mm
Mounting Bore Dia.
22 mm
Flute Length
19 mm
Achievable Chamfer Height
19 mm
Details
Item
Indexable end mill
Shank Type
with bore
Coolant Through
Yes
Chamfer Angle
45°
Insert Screw
219814 (8IP; 1.2 Nm)
Number of Effective Inserts
3
Tool Exchange
PowerCard
Number of Indexable Inserts
9
Description
Note: Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Number of effective inserts Zeff: 3 Number of indexable inserts: 9 Overall length Ltot: 52 mm smallestD: 17 mm largestD1: 56 mm achievable chamfer width b: 17.8 mm
