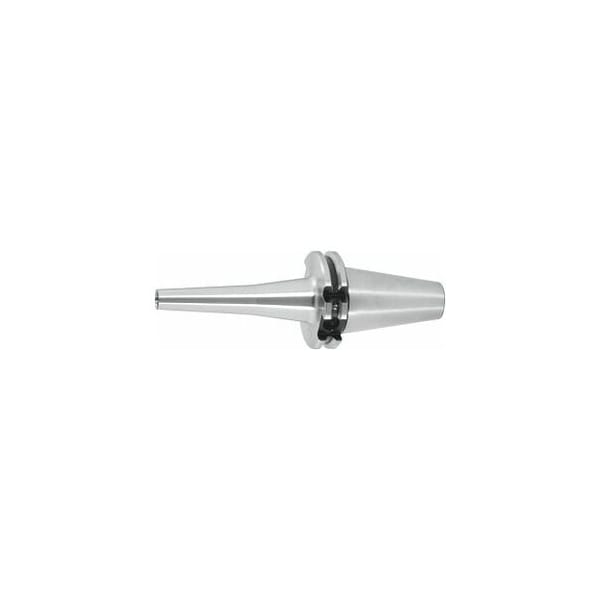

Collet Chuck, Extra Slim, SK 40, Projection: 120, Clamping Range: 2-6mm
Mfr # 300782 2-6
Zoro # G914774315
product price:Â
$
291.99
/ea
Free Shipping & Returns
Key Features
Taper Size
SK40
Shank Shape
A
Clamping Range
2 mm
Dia.
9.6 mm
Concentricity
≤ 5 µm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 300782 2-6
- Zoro #
- G914774315
- UPC #
- -
- Country of Origin
- India
Dimensions
- Taper Size
- SK40
- Dia.
- 9.6 mm
- Outside Dia.
- 27 mm
Details
- Item
- Collet chuck
- Shank Shape
- A
- Clamping Range
- 2 mm
- Concentricity
- ≤ 5 µm
- Balance Quality
- G 2.5 at 25,000 rpm
- Balluffchip Bore
- Yes
- Standards
- ISO 7388-1
- Machining Strategy
- HSC
- Projection
- 120 mm
Description
Taper ground internally and externally. Shanks hard turned. With RFID/Balluffchip bore. The collet is clamped by a threaded connection from behind through the chuck, no clamping nut required! Advantage: Extremely slim design permits machining of components where access is difficult, e.g. during toolmaking and mould-making. Application: For clamping tools with plain shank to DIN 6499. Supplied with: Clamping screw and wrench with T-handle. Optional extras: Pull studs PS No. 308600 308806, PS wrenches No. 308820 308835, GARANT collets No. 309563, ALBRECHT collets No. 309572 - 309573. Machining strategy: HSC Dia D1: 9.6 mm Dia D2: 13 mm External Dia D: 27 mm
