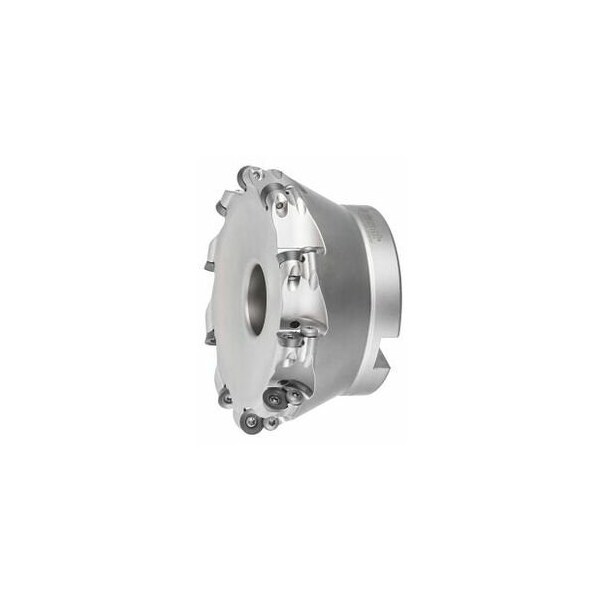

Copy Mill, with Bore, for RD. Inserts, 125mm Diameter, 10 Inserts
Mfr # 212145 125/10
Zoro # G716120167
product price:Â
$
544.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 27°
Overall Length
63 mm
Number of Teeth
10
Cutting Dia.
125 mm
Insert Screw
219805 (15IP; 3.8 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212145 125/10
- Zoro #
- G716120167
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 63 mm
- Cutting Dia.
- 125 mm
- Mounting Bore Dia.
- 40 mm
- Free length
- 63 mm
- Diameter 3
- 113 mm
- Ramping Length for αmax
- 109.94 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 27°
- Number of Teeth
- 10
- Insert Screw
- 219805 (15IP; 3.8 Nm)
- Milling head suitable for insert shape
- Round
- Approach Angle
- 15 – 27°
- Circular Interpolation Milling - Dmax
- 248 mm
- Circular Interpolation Milling - Dmin
- 238 mm
- Ramping Angle
- 0.44°
- Axial Rake Angle
- 0°
- Fz Helix
- 0.7
- Dia/No. of Cutting Edges
- 125 mm/10
- Tool Exchange
- PowerCard
- Circular interpolation milling ap
- 2.5 mm
- Coolant Through
- Yes
- Shank Type
- with bore
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning as the cutting edge wears. Attention: Retaining screws and retaining washers should not be used for inserts with positive geometry. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2.5 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 10D3: 113 mm Overall length Ltot: 63 mm Mounting bore : 40 mm Circular interpolation millingDmin: 238 mm Circular interpolation millingDmax: 248 mm
