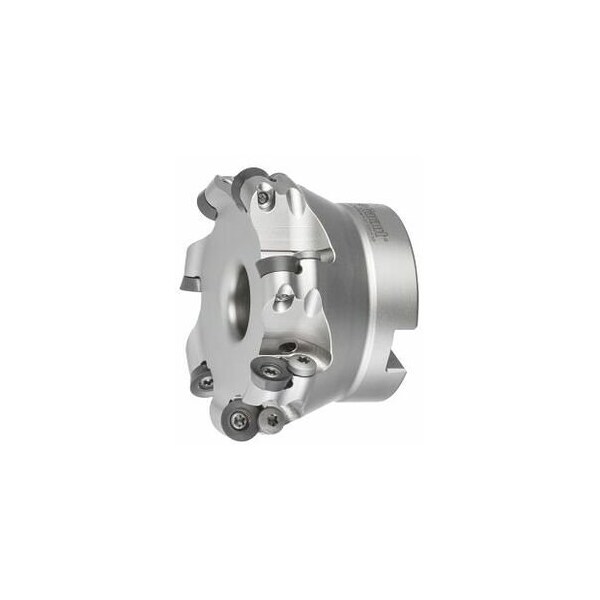

Copy Mill, with Bore, for RD. Inserts, 80mm Diameter, 7 Inserts
Mfr # 212145 80/7
Zoro # G516120220
product price:Â
$
457.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 27°
Number of Teeth
7
Cutting Dia.
80 mm
Overall Length
50 mm
Insert Screw
219805 (15IP; 3.8 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212145 80/7
- Zoro #
- G516120220
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 80 mm
- Overall Length
- 50 mm
- Diameter 3
- 68 mm
- Mounting Bore Dia.
- 27 mm
- Ramping Length for αmax
- 64.94 mm
- Free length
- 50 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 27°
- Number of Teeth
- 7
- Insert Screw
- 219805 (15IP; 3.8 Nm)
- Approach Angle
- 15 – 27°
- Circular interpolation milling ap
- 2.5 mm
- Dia/No. of Cutting Edges
- 80 mm/7
- Fz Helix
- 0.7
- Axial Rake Angle
- 0°
- Circular Interpolation Milling - Dmax
- 158 mm
- Ramping Angle
- 0.74°
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Milling head suitable for insert shape
- Round
- Shank Type
- with bore
- Circular Interpolation Milling - Dmin
- 148 mm
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning as the cutting edge wears. Attention: Retaining screws and retaining washers should not be used for inserts with positive geometry. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2.5 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 7D3: 68 mm Overall length Ltot: 50 mm Mounting bore : 27 mm Circular interpolation millingDmin: 148 mm Circular interpolation millingDmax: 158 mm
