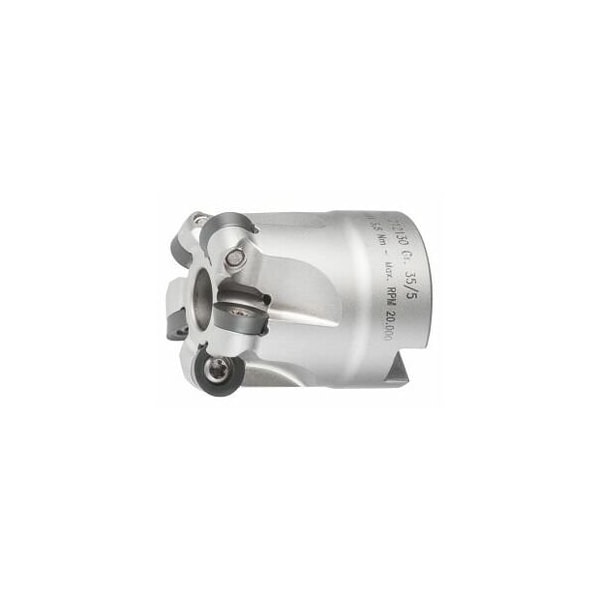

Copy Mill, with Bore, for RD. Inserts, 35mm Diameter, 5 Inserts
Mfr # 212130 35/5
Zoro # G916120141
product price:Â $328.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 30°
Number of Teeth
5
Insert Screw
219804 (15IP; 3.8 Nm)
Overall Length
40 mm
Cutting Dia.
35 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212130 35/5
- Zoro #
- G916120141
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 40 mm
- Cutting Dia.
- 35 mm
- Mounting Bore Dia.
- 16 mm
- Diameter 3
- 25 mm
- Free length
- 40 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 30°
- Number of Teeth
- 5
- Insert Screw
- 219804 (15IP; 3.8 Nm)
- Dia/No. of Cutting Edges
- 35 mm/5
- Approach Angle
- 15 – 30°
- Tool Exchange
- PowerCard
- Milling head suitable for insert shape
- Round
- Shank Type
- with bore
- Axial Rake Angle
- 7°
- Coolant Through
- Yes
- Fz Helix
- 0.7
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Vibration reduction and soft cutter edge entry due to 7 deg. positive setting of the indexable inserts. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 5D3: 25 mm Overall length Ltot: 40 mm Mounting bore : 16 mm suitable indexable insert: RD..1003 Pack of insert screws: 219804 15IP- 3.8 Nm
