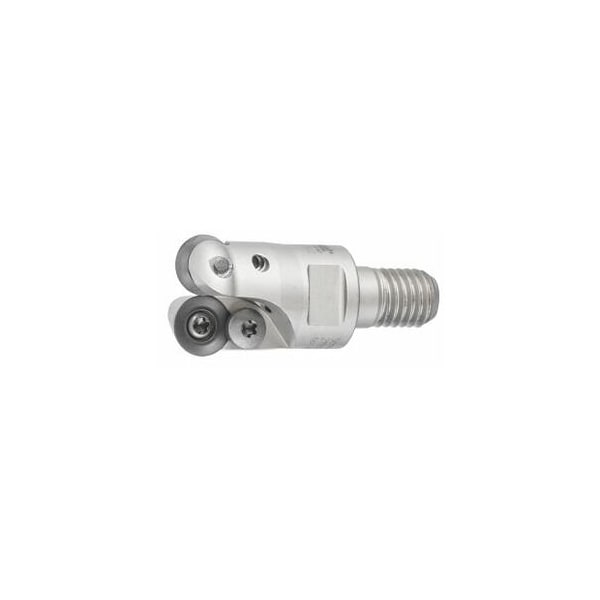

Copy Mill, with Threaded Shank, for RD. Inserts, 24mm Diameter, 2 Inserts
- Mfr # 212155 24/2
- Zoro # G916120219
product price:Â
$
212.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 27°
Overall Length
35 mm
Insert Screw
219805 (15IP; 3.8 Nm)
Cutting Dia.
24 mm
Number of Teeth
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212155 24/2
- Zoro #
- G916120219
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 35 mm
- Cutting Dia.
- 24 mm
- Diameter 1
- 12.5 mm
- Free length
- 35 mm
- Ramping Length for αmax
- 8.94 mm
- Diameter 2
- 20.7 mm
- Diameter 3
- 12 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 27°
- Insert Screw
- 219805 (15IP; 3.8 Nm)
- Number of Teeth
- 2
- Approach Angle
- 15 – 27°
- Axial Rake Angle
- 0°
- Dia/No. of Cutting Edges
- 24 mm/2
- Milling head suitable for insert shape
- Round
- Coolant Through
- Yes
- Tool Exchange
- PowerCard
- Fz Helix
- 0.7
- Circular Interpolation Milling - Dmin
- 36 mm
- Shank Type
- with threaded shank
- Circular interpolation milling ap
- 2.5 mm
- Mounting Thread
- M12
- Circular Interpolation Milling - Dmax
- 46 mm
- Ramping Angle
- 5.37°
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning as the cutting edge wears. Attention: Retaining screws and retaining washers should not be used for inserts with positive geometry. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2.5 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D1 h6: 12.5 mmD2: 20.7 mmD3: 12 mm Overall length Ltot: 35 mm Mounting thread M: M12
