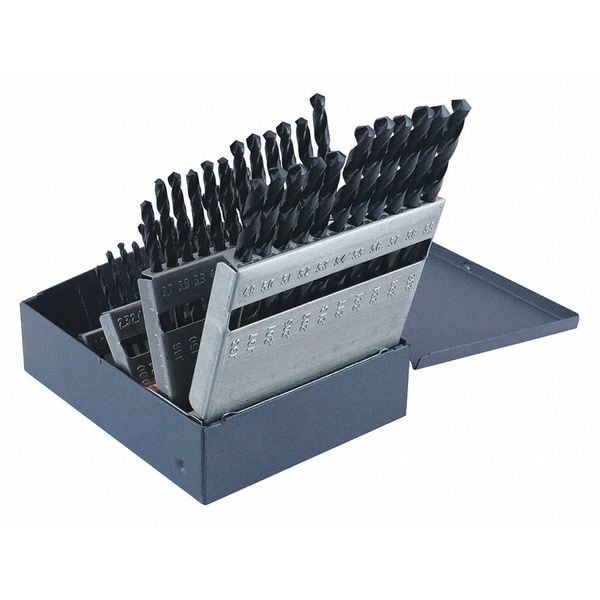

50PC CLE-MAX Jobber Length Drill Set Cleveland 2001G Steam Oxide HSS RHS/RHC 1mm-5.9mm

  • Mfr # C00960

  • Zoro # G0960491

product price:
$
148.99
/ea
Free Shipping & Returns

Key Features

Number of Pieces
50
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C00960
Zoro #
G0960491
UPC #
697334009603
Country of Origin
United States

Dimensions

Drill Bit Dimension Type
Metric
Shank Dia.
1.00 to 5.90 mm
Sizes Included
1.00mm,1.10mm,1.20mm,1.30mm,1.40mm,1.50mm,1.60mm,1.70mm,1.80mm,1.90mm,2.00mm,2.10mm,2.20mm,2.30mm,2.40mm,2.50mm,2.60mm,2.70mm,2.80mm,2.90mm,3.00mm,3.10mm,3.20mm,3.30mm,3.40mm,3.50mm,3.60mm,3.70mm,3.80mm,3.90mm,4.00mm,4.10mm,4.20mm,4.30mm,4.40mm,4.50mm,4.60mm,4.70mm,4.80mm,4.90mm,5.00mm,5.10mm,5.20mm,5.30mm,5.40mm,5.50mm,5.60mm,5.70mm,5.80mm,5.90mm
Drill Bit Size
1 mm to 5.9 mm by 0.1 mm
Depth x Dia. Ratio
4xD
Size Range
1mm-5.9mm
Depth:Dia. Ratio
4xD
Smallest Drill Bit Size
1 mm
Drill Length Class
Jobber-Length
Largest Drill Bit Size
5.9 mm
Drill Bit Sizes Included
1 mm, 1.1 mm, 1.2 mm, 1.3 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.7 mm, 1.8 mm, 1.9 mm, 2 mm, 2.1 mm, 2.2 mm, 2.3 mm, 2.4 mm, 2.5 mm, 2.6 mm, 2.7 mm, 2.8 mm, 2.9 mm, 3 mm, 3.1 mm, 3.2 mm, 3.3 mm, 3.4 mm, 3.5 mm, 3.6 mm, 3.7 mm, 3.8 mm, 3.9 mm, 4 mm, 4.1 mm, 4.2 mm, 4.3 mm, 4.4 mm, 4.5 mm, 4.6 mm, 4.7 mm, 4.8 mm, 5 mm, 5.1 mm, 5.2 mm, 5.3 mm, 5.4 mm, 5.5 mm, 5.6 mm, 5.7 mm, 5.8 mm, 5.9 mm
Overall Length
1 11/32 in, 1 27/64 in, 1 1/2 in, 1 9/16 in, 1 11/16 in, 1 13/16 in, 1 15/16 in, 2 3/32 in, 2 15/64 in, 2 13/32 in, 2 9/16 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in
Wire Rope Length
1 11/32 in, 1 27/64 in, 1 1/2 in, 1 9/16 in, 1 11/16 in, 1 13/16 in, 1 15/16 in, 2 3/32 in, 2 15/64 in, 2 13/32 in, 2 9/16 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in
Length
1 11/32 in, 1 27/64 in, 1 1/2 in, 1 9/16 in, 1 11/16 in, 1 13/16 in, 1 15/16 in, 2 3/32 in, 2 15/64 in, 2 13/32 in, 2 9/16 in, 2 49/64 in, 2 61/64 in, 3 5/32 in, 3 25/64 in, 3 21/32 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
50
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M, DIN 338
Point Type
Radial
List Number
2001G
Shank Type
Straight
Drill Style
Jobber Drill
Measurement System
Metric
Left/Right Hand
Right
Number of Flutes
2
Primary Material Application
Cast Iron, Steel
Aircraft Drill
No
Number of Drill Bits
50
Decimal Equivalent
0.0394 in -0.2323 in
Drill Bit Point Type
Conventional Point
Finish - Machining
Black Oxide
Material - Machining
High Speed Steel
Coolant Fed
Non-Coolant Through
Shank Type - Machining
Straight
Drill Bit Case Type
Metal Index
Flute Type
Spiral
Primary Material Application ISO Code
K, P
Spiral Direction
Right Hand
Material Grade - Machining
General Purpose
Helix Angle - Minimum
21 Degrees
Helix Angle - Maximum
34 Degrees

Description

The CLEVELAND C00960 is a metric jobber-length drill bit set consisting of 50 high-speed steel bits ranging from 1.00 mm to 5.90 mm in diameter with 0.1 mm increments. These right-hand spiral drill bits feature a radial point type and are intended for use when drilling cast iron and steel materials. The set includes bits with two flutes and conventional 118-degree point angles, provided in a metal drill index for organized storage.

Key Features:

  • Total drill bits: 50 pieces sized 1.00 mm to 5.90 mm (metric measurement system)
  • Material: High speed steel (HSS) grade suitable for general-purpose drilling applications
  • Drill length: Jobber length with varying overall lengths between 1 11/32 in and 3 21/32 in
  • Shank type: Straight, with diameters matching drill sizes
  • Spiral direction: Right hand with helix angles from 21° to 34°
  • Point type: Radial with 118° conventional point angle
  • Flutes: 2 spiral flutes per drill bit
  • Primary material applications: Cast iron and steel
  • Conforms to ASME B94.11M and DIN 338 standards
  • Supplied in a metal drill index for storage and selection
