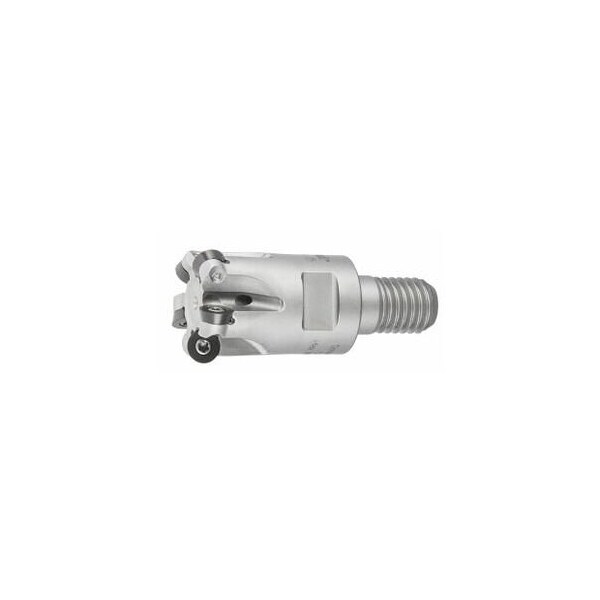

Copy Mill, with Threaded Shank, for RD. Inserts, 25mm Diameter, 5 Inserts
Mfr # 212100 25
Zoro # G116120217
product price:Â
$
293.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 20°
Number of Teeth
5
Overall Length
35 mm
Cutting Dia.
25 mm
Insert Screw
219803 (8IP; 1.2 Nm)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212100 25
- Zoro #
- G116120217
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Overall Length
- 35 mm
- Cutting Dia.
- 25 mm
- Diameter 2
- 20.7 mm
- Ramping Length for αmax
- 16.21 mm
- Diameter 1
- 12.5 mm
- Diameter 3
- 18 mm
- Free length
- 35 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 20°
- Number of Teeth
- 5
- Insert Screw
- 219803 (8IP; 1.2 Nm)
- Axial Rake Angle
- 0°
- Coolant Through
- Yes
- Dia/No. of Cutting Edges
- 25 mm/5
- Shank Type
- with threaded shank
- Tool Exchange
- PowerCard
- Fz Helix
- 0.7
- Ramping Angle
- 1.73°
- Milling head suitable for insert shape
- Round
- Approach Angle
- 15 – 20°
- Circular Interpolation Milling - Dmax
- 48 mm
- Circular interpolation milling ap
- 1.5 mm
- Mounting Thread
- M12
- Circular Interpolation Milling - Dmin
- 43 mm
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Note: ap max = 1.5 mm. Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit shank No. 674252 size 8IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 5D1 h6: 12.5 mmD2: 20.7 mmD3: 18 mm Overall length Ltot: 35 mm Mounting thread M: M12
