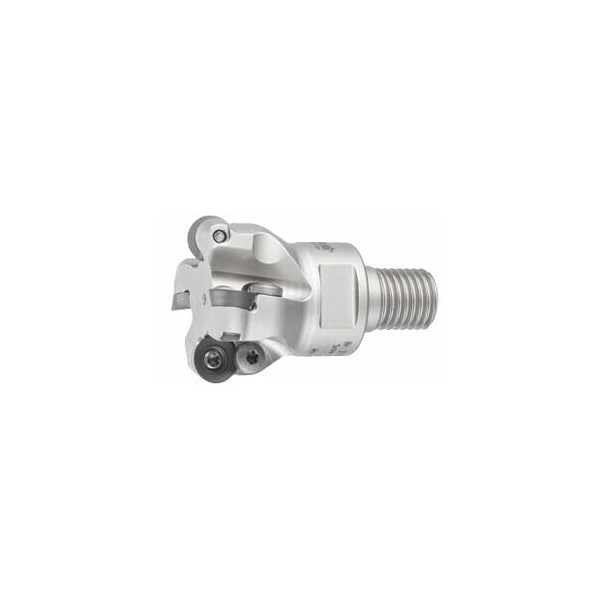

Copy Mill, with Threaded Shank, for RD. Inserts, 42mm Diameter, 4 Inserts
Mfr # 212160 42/4
Zoro # G516120176
product price:Â $276.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 27°
Cutting Dia.
42 mm
Number of Teeth
4
Insert Screw
219805 (15IP; 3.8 Nm)
Overall Length
42 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212160 42/4
- Zoro #
- G516120176
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 42 mm
- Overall Length
- 42 mm
- Diameter 3
- 30 mm
- Diameter 2
- 28.7 mm
- Diameter 1
- 17 mm
- Free length
- 42 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 27°
- Number of Teeth
- 4
- Insert Screw
- 219805 (15IP; 3.8 Nm)
- Axial Rake Angle
- 7°
- Dia/No. of Cutting Edges
- 42 mm/4
- Fz Helix
- 0.7
- Approach Angle
- 15 – 27°
- Coolant Through
- Yes
- Mounting Thread
- M16
- Shank Type
- with threaded shank
- Tool Exchange
- PowerCard
- Milling head suitable for insert shape
- Round
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning as the cutting edge wears. Vibration reduction and soft cutter edge entry due to 7 deg. positive setting of the indexable inserts. Attention: Retaining screws and retaining washers should not be used for inserts with positive geometry. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. ap max = 2.5 mm. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 4D1 h6: 17 mmD2: 28.7 mmD3: 30 mm Overall length Ltot: 42 mm Mounting thread M: M16
