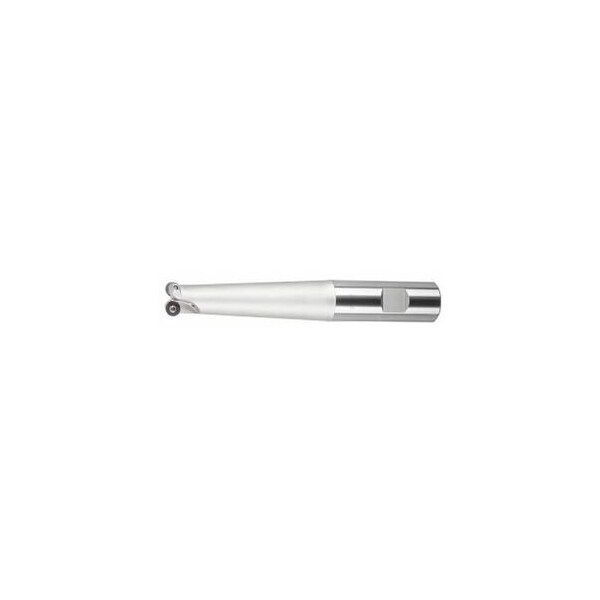

Copy Mill, with Weldon Shank, for RD. Inserts, 16mm Diameter, 2 Inserts
Mfr # 212090 16L
Zoro # G216120148
product price:Â
$
187.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 28°
Insert Screw
219803 (8IP; 1.2 Nm)
Cutting Dia.
16 mm
Overall Length
135 mm
Number of Teeth
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212090 16L
- Zoro #
- G216120148
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 16 mm
- Overall Length
- 135 mm
- Shank Dia.
- 20 mm
- Ramping Length for αmax
- 7.23 mm
- Diameter 3
- 9 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 28°
- Insert Screw
- 219803 (8IP; 1.2 Nm)
- Number of Teeth
- 2
- Axial Rake Angle
- 0°
- Ramping Angle
- 3.89°
- Fz Helix
- 1
- Circular interpolation milling ap
- 1.5 mm
- Approach Angle
- 15 – 28°
- Circular Interpolation Milling - Dmin
- 25 mm
- Overhang
- 26 mm
- Tool Exchange
- PowerCard
- Coolant Through
- Yes
- Circular Interpolation Milling - Dmax
- 30 mm
- Dia/No. of Cutting Edges
- 16 mm/2L
- Milling head suitable for insert shape
- Round
- Shank Type
- Weldon shank
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Note: ap max = 1.5 mm. Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D3: 9 mm Overhang L1: 26 mm Lengthd1: 80 mm Overall length Ltot: 135 mm ShankDs h6: 20 mm
