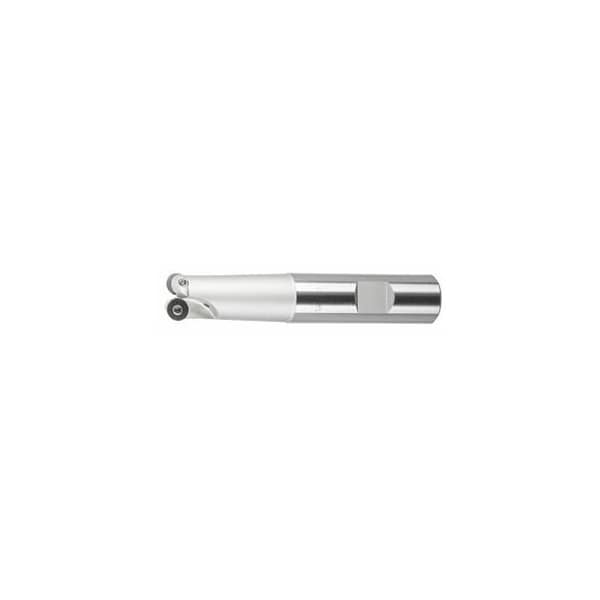

Copy Mill, with Weldon Shank, for RD. Inserts, 15mm Diameter, 2 Inserts
- Mfr # 212090 15
- Zoro # G916120189
product price:Â
$
185.99
/ea
Free Shipping & Returns
Key Features
Cutting Angle
15 – 28°
Shank Dia.
16 mm
Cutting Dia.
15 mm
Insert Screw
219803 (8IP; 1.2 Nm)
Number of Teeth
2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 212090 15
- Zoro #
- G916120189
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Shank Dia.
- 16 mm
- Cutting Dia.
- 15 mm
- Overall Length
- 90 mm
- Diameter 3
- 8 mm
- Ramping Length for αmax
- 6.23 mm
Details
- Item
- Copy mill
- Cutting Angle
- 15 – 28°
- Insert Screw
- 219803 (8IP; 1.2 Nm)
- Number of Teeth
- 2
- Ramping Angle
- 4.51°
- Circular Interpolation Milling - Dmin
- 23 mm
- Tool Exchange
- PowerCard
- Approach Angle
- 15 – 28°
- Coolant Through
- Yes
- Dia/No. of Cutting Edges
- 15 mm/2
- Circular Interpolation Milling - Dmax
- 28 mm
- Milling head suitable for insert shape
- Round
- Overhang
- 24.5 mm
- Axial Rake Angle
- 0°
- Fz Helix
- 1
- Circular interpolation milling ap
- 1.5 mm
- Shank Type
- Weldon shank
Description
Version: Milling body with irregular pitch for smooth cutting. - High axial run-out accuracy and concentricity - Stepless repositioning of the insert as the cutting edge wears. Note: ap max = 1.5 mm. Use GARANT torque screwdriver TQ No. 211750 size 1.2 with bit No. 674252 size 8IP. Tool exchange: PowerCard Through-coolant: yes Number of cutting edges Z: 2D3: 8 mm Overhang L1: 24.5 mm Lengthd1: 40 mm Overall length Ltot: 90 mm ShankDs h6: 16 mm
