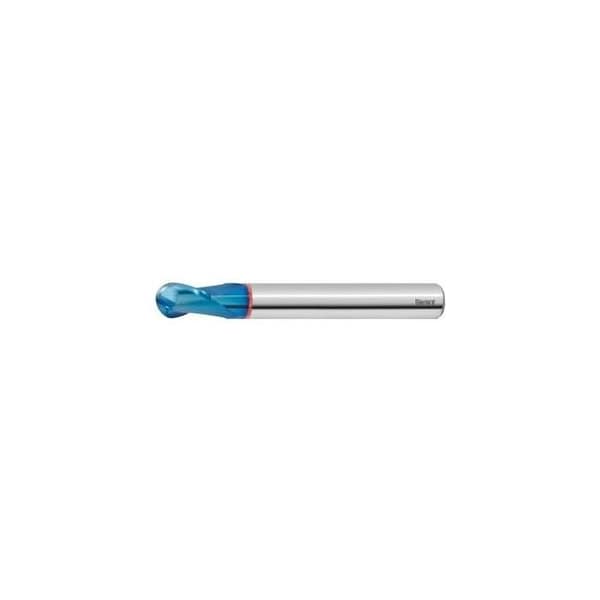

Diabolo Solid Carbide Ball Nose End Mill, for Hard Steels, TiAlN Coated, 4 mm
Mfr # 207362 4
Zoro # G614382964
product price: $83.35
/ea
Free Shipping & Returns
Key Features
Color Ring
red
Maximum Cutting Depth Ap Max When Copying
0.2 mm
Tolerance Nominal Diameter
f8
Min. Cutting Depth
0.01 mm
Shank Tolerance
h6
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
207362 4
Zoro #
G614382964
UPC #
-
Country of Origin
Germany
Dimensions
Maximum Cutting Depth Ap Max When Copying
0.2 mm
Tolerance Nominal Diameter
f8
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
8 mm
Shank Dia.
4 mm
Milling Diameter
4 mm
Length of Cut
8 mm
Corner Radius
2 mm
Overall Length
75 mm
Description
GARANT Diabolo: Special geometry, coating and carbide for hard machining. Tolerance: Radius contour = ±0.005 mm. No. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Flute length Lc: 8 mm Overall length L: 75 mm Shank Dia. Ds: 4 mm Feed fz for side milling in steel < 65 HRC: 0.019 mm Feed fz for copy milling in steel < 65 HRC: 0.019 mm
