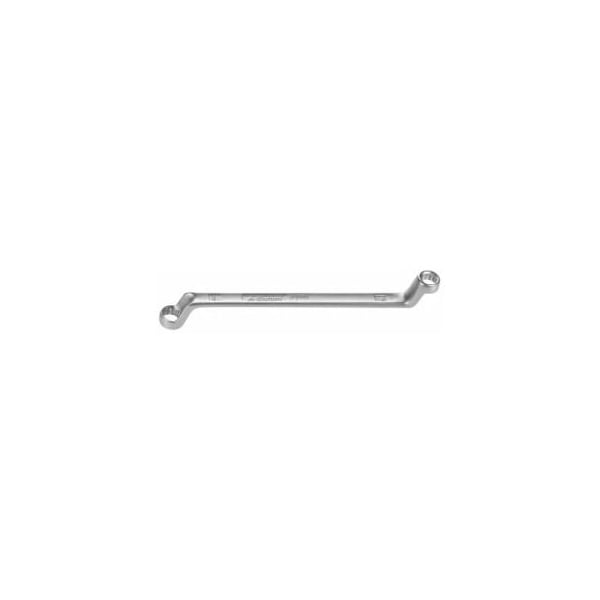

Double Box Wrench, 75 Deg, 10mm x 11mm
Mfr # 615600 10X11
Zoro # G114387490
product price:Â
$
15.95
/ea
Key Features
Material
Chrome vanadium steel
Finish
Matt Chrome-Plated
Overall Length
200 mm
Width across flats 2
11 mm
Manufacturing process
Drop Forged
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 615600 10X11
- Zoro #
- G114387490
- UPC #
- -
- Country of Origin
- India
Dimensions
- Overall Length
- 200 mm
- Nominal Size
- 10mm x 11mm
- Width across flats 2
- 11 mm
- Width across flats 1
- 10 mm
- Maximum Ring Diameter d1
- 16 mm
Details
- Material
- Chrome vanadium steel
- Finish
- Matt Chrome-Plated
- Manufacturing process
- Drop Forged
- Ring setting
- 75 Degrees
- Ring end deep cranked
- Yes
Description
Drop-forged. With close tolerance jaw widths. With easy-grip profile shaft. Exceptional tool life and wear resistance. Ring ends with HT-Drive profile. Standard: DIN 838 / ISO 3318 Material: Chrome alloy steel, non-flaking chrome-plated, smoothed finish. Note: HT-Drive the particularly close-fitting profile. Advantage Bolts are gripped on the flanks. The corners are protected. Longer bolt life. Larger contact surfaces between bolt and tool. Secure grip and higher torque transmission. wrench length L: 200 mm maximum ring D1 max: 16 mm maximum ring D2 max: 18 mm
