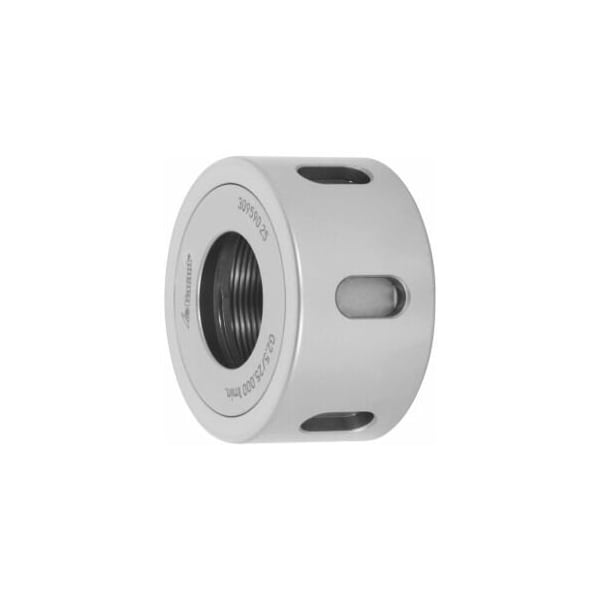

ER Clamping Nut for HiRunER Collet Chucks, for ER: 32
Mfr # 309617 32
Zoro # G414832010
product price: $80.15
/ea
Free Shipping & Returns
Key Features
Outside Dia.
51.8 mm
Overall Length
26 mm
Thread Size
M42x1
Max. Tightening Torque
136 N·m
Collet Series
ER32
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
309617 32
Zoro #
G414832010
UPC #
-
Country of Origin
Germany
Dimensions
Outside Dia.
51.8 mm
Overall Length
26 mm
Thread Size
M42x1
Details
Max. Tightening Torque
136 N·m
Item
Clamping nut
Collet Series
ER32
Standards
DIN 6499 D
Balance Quality
G 2.5 at 25,000 rpm
Description
Thread and taper ground in a single setup for highest concentricity. Surface smoothly coated, ball-bearing mounted. Low coefficient of friction, high clamping forces. With slots. Suitable for: HiRunER precision ER collet chuck No. 300642, 300643, 300647, 302839, 302843, 302844, 305523, 305524, 305532. Optional extras: Hook wrench No. 628400, or torque wrench No. 309749 or No. 628520. Note: Collet chuck and clamping nut are balanced separately! Balance quality G at rotational speed: G 2.5 at 25-000 rpm Overall length L: 26 mm External Dia D: 51.8 mm Thread: M42x1 maximum tightening torque: 136 Nm
