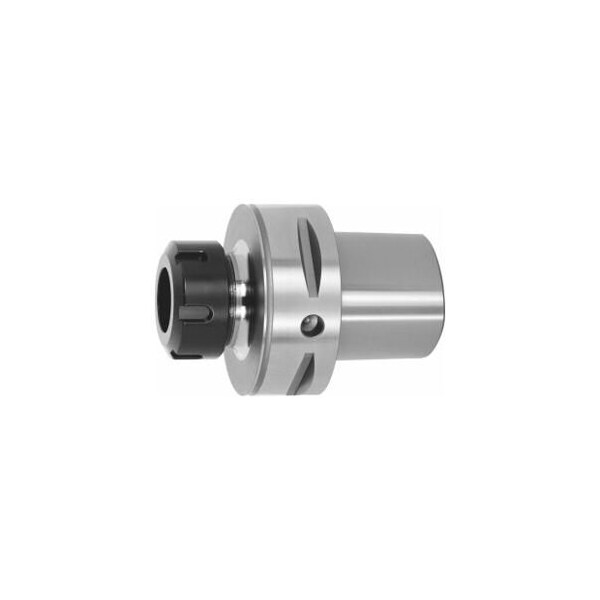

ER Collet Chuck, PSC 80 Short, for ER Collet: 40
Mfr # 308539 40
Zoro # G214774138
product price: $639.99
/ea
Free Shipping & Returns
Key Features
Taper Size
PSC80
Collet Series
ER40
Projection
70 mm
Concentricity
≤ 3 µm
Coolant Through
Yes
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
308539 40
Zoro #
G214774138
UPC #
-
Country of Origin
Germany
Dimensions
Taper Size
PSC80
Clamping Dia.
3-26 mm
Outside Dia.
63 mm
Details
Item
Collet Chuck
Collet Series
ER40
Projection
70 mm
Concentricity
≤ 3 µm
Coolant Through
Yes
Clamping Range
3 mm
Standards
ISO 26623-1
Spare Garant High-Speed Clamping Nut No. 309610
40
Balance Quality
G 2.5 at 25,000 rpm
Machining Strategy
HSC
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. Application: For clamping tools with plain shanks in ER collets to DIN 6499, forms A and B. Supplied with: Coated High-Speed clamping nut. Optional extras: ER collets No. 308881 309434, ER chuck key No. 309680 or 613300, coolant pipe No. 309885 and socket No. 309893. Coolant tube and assembling key for coolant tubes No. 309885 and 309893. Through-coolant: yes Clamping range: 3 26 mm Overhang dimension A: 70 mm External Dia D: 63 mm Spare GARANT high-speed clamping nut No. 309610: 40
