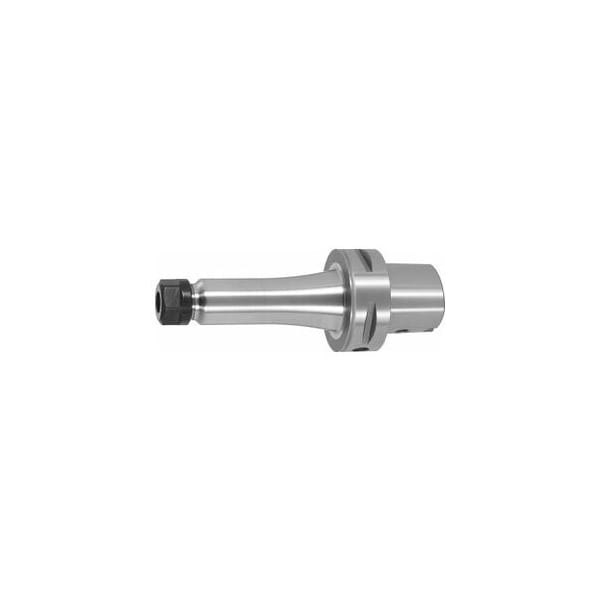

ER Collet Chuck, PSC63, Projection:160, for ER Collet: 16
Mfr # 308535 16
Zoro # G914774094
product price: $406.99
/ea
Free Shipping & Returns
Key Features
Collet Series
ER16
Outside Dia.
28 mm
Machining Strategy
HSC
Clamping Range
0.5 mm
Clamping Dia.
0.5-10 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
308535 16
Zoro #
G914774094
UPC #
-
Country of Origin
Germany
Dimensions
Outside Dia.
28 mm
Clamping Dia.
0.5-10 mm
Taper Size
PSC63
Details
Collet Series
ER16
Machining Strategy
HSC
Clamping Range
0.5 mm
Standards
ISO 26623-1
Item
Collet chuck
Spare Garant High-Speed Clamping Nut No. 309610
16
Coolant Through
Yes
Projection
160 mm
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 3 µm
Description
With RFID/Balluffchip bore. All shanks hard turned for smooth running!. Mating faces of the PSC internal contour machined. Application: For clamping tools with plain shank in ER collets to DIN 6499 Form A and B. Supplied with: Coated high-speed clamping nut. Optional extras: ER collets No. 308881 309434, ER chuck key No. 309680 or 613300, coolant pipe No. 309885 and socket No. 309893. Coolant tube and assembling key for coolant tubes No. 309885 and 309893. Through-coolant: yes Clamping range: 0.5 10 mm Overhang dimension A: 160 mm External Dia D: 28 mm Spare GARANT high-speed clamping nut No. 309610: 16
