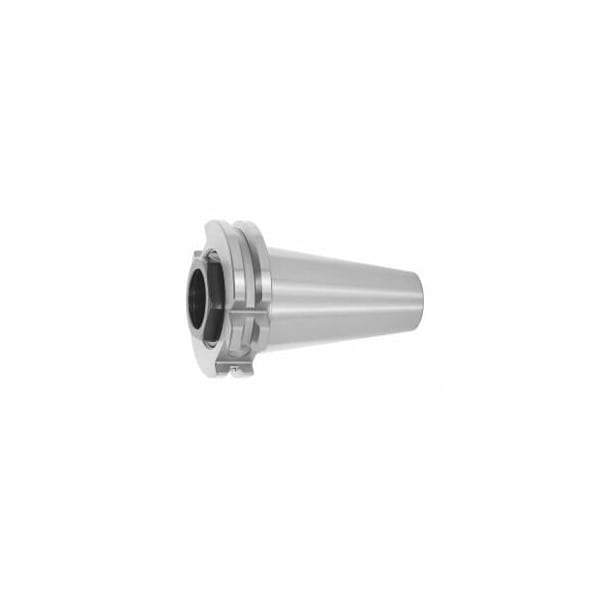

ER Collet Chuck, Ultra-Short, SK50, for ER Collet: 32
Mfr # 300446 32
Zoro # G514773015
product price: $245.99
/ea
Free Shipping & Returns
Key Features
Standards
ISO 7388-1
Outside Dia.
40 mm
Concentricity
≤ 3 µm
Clamping Dia.
2-20 mm
Collet Series
ER32
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
300446 32
Zoro #
G514773015
UPC #
-
Country of Origin
Italy
Dimensions
Outside Dia.
40 mm
Clamping Dia.
2-20 mm
Width across Flats
32 mm
Taper Size
SK50
Details
Item
Collet chuck
Standards
ISO 7388-1
Concentricity
≤ 3 µm
Collet Series
ER32
Machining Strategy
HPC
Projection
30 mm
Shank Shape
AD
Balance Quality
G 2.5 at 25,000 rpm
Description
Taper ground internally and externally. Ultra-Short type with internal precision clamping nut. Best suited to working in restricted working areas, with higher stability. Application: For clamping tools with parallel shank in collets to DIN 6499 Form A and B. Supplied with: ER clamping nut internal. Optional extras: ER collets No. 308941 309448, Pull studs PS No. 308600 308806, PS wrenches No. 308820 - 308835. Note: Matching clamping nut No. 309621. Machining strategy: HPC Overhang dimension A: 30 mm External Dia D: 40 mm
