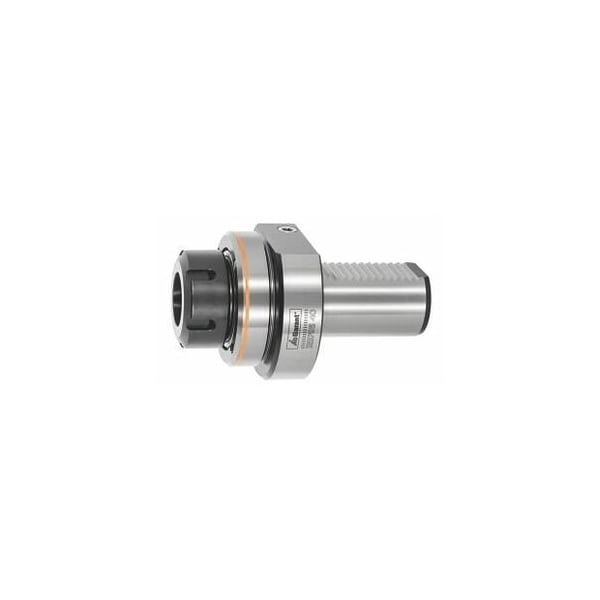

ER Compensating Floating Holder, Shank Diameter: 30 mm, for ER Collets: 25
Mfr # 319785 30
Zoro # G015232677
product price:Â
$
875.99
/ea
Free Shipping & Returns
Key Features
Shank Dia.
30 mm
Colour Code for VDI Shanks
VDI 30
Projection
64 mm
Collet Series
ER25
Radial compensation
1 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 319785 30
- Zoro #
- G015232677
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Shank Dia.
- 30 mm
- Outside Dia.
- 68 mm
Details
- Item
- Collet chuck
- Colour Code for VDI Shanks
- VDI 30
- Projection
- 64 mm
- Collet Series
- ER25
- Radial compensation
- 1 mm
- Coolant Through
- Yes
Description
Compensating holder with ER collet adaption. Adjustable radial and angular compensation. With through coolant feed. Application: Optimum for compensating alignment errors between workpiece and tool, for instance when reaming or tapping without tension / compression compensation. For use primarily on lathes, but also suitable for milling machines. Through-coolant: yes Shank Dia d: 30 mm Overhang dimension A: 64 mm External Dia D: 68 mm Radial compensation: 1 mm suitable for ER size: 25 color code for VDI shanks: VDI 30
