Shop GARANT

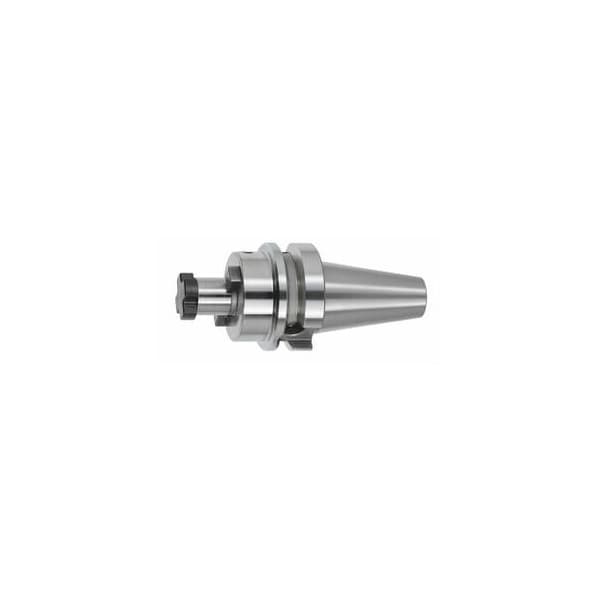

Face Mill Arbor, Form AD, BT 30 Short, Clamping Diameter: 16mm

  • Mfr # 303780 16

  • Zoro # G514774364

product price:  $156.99
/ea
Free Shipping & Returns

Key Features

Version
BT-DC
Balance Quality
G 2.5 at 25,000 rpm
Cooling Channel Bore
Not Pluggable
Concentricity
≤ 5 µm
Taper Size
BT30
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
303780 16
Zoro #
G514774364
UPC #
-
Country of Origin
India

Dimensions

Taper Size
BT30
Clamping Dia.
16 mm
Spigot Dia.
16 mm
Outside Dia.
38 mm

Details

Version
BT-DC
Balance Quality
G 2.5 at 25,000 rpm
Cooling Channel Bore
Not Pluggable
Item
Milling head arbor
Concentricity
≤ 5 µm
Machining Strategy
HPC
Suitable Toggle Spanner No. 309840
16
Shank Shape
AD
Projection
35 mm
Standards
DIN 6357
Spare Milling Cutter Lock Screw No. 309860 / 309861
16

Description

All shanks hard turned for smooth running!. With RFID/Balluffchip bore and Cooling Channel Bores. Advantage: The double contact between the taper and the flat flange creates a more stable and precise clamping situation: Better surface quality Longer tool life times Consistent seating in the headstock even at high speeds Smaller radial run-outA BT double contact Arbor can also be used in a standard BT machine spindle - and vice versa. The advantages of the double contact are however achieved only when a double contact Arbor and double contact spindle are used together. Supplied with: Lock screw. Optional extras: Pull studs PS No. 308760 308806. Special toggle wrench No. 309840. Overhang dimension A: 35 mm a: 1 mm External Dia D: 38 mm Spare Milling cutter lock screw No. 309860 / 309861: 16 Suitable toggle wrench No. 309840: 16
