Shop GARANT

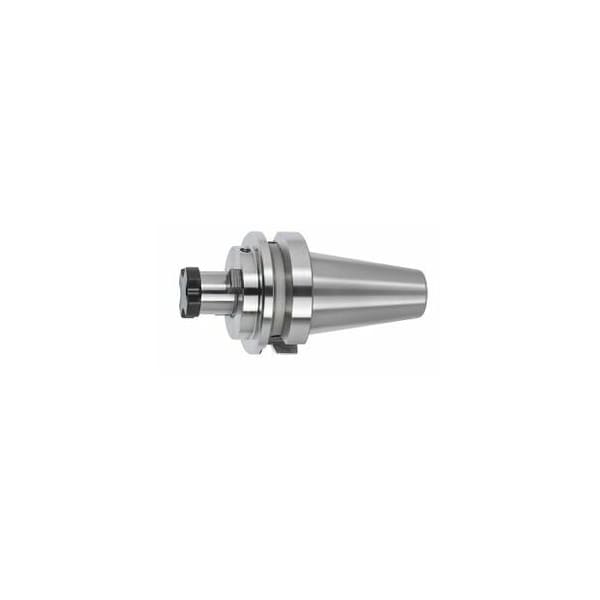

Face Mill Arbor, Form AD, BT 40 Short, Clamping Diameter: 32mm

  • Mfr # 303800 32

  • Zoro # G614774363

product price:
$
189.99
/ea
Free Shipping & Returns

Key Features

Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Taper Size
BT40
Version
BT-DC
Cooling Channel Bore
Not Pluggable
Balance Quality
G 2.5 at 25,000 rpm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
303800 32
Zoro #
G614774363
UPC #
-
Country of Origin
India

Dimensions

Taper Size
BT40
Spigot Dia.
32 mm
Clamping Dia.
32 mm
Outside Dia.
78 mm

Details

Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Version
BT-DC
Cooling Channel Bore
Not Pluggable
Balance Quality
G 2.5 at 25,000 rpm
Item
Milling head arbor
Projection
50 mm
Machining Strategy
HPC
Concentricity
≤ 5 µm
Shank Shape
AD
Standards
DIN 6357
Suitable Toggle Spanner No. 309840
32

Description

All shanks hard turned for smooth running!. With RFID/Balluffchip bore and Cooling Channel Bores. Advantage: The double contact between the taper and the flat flange creates a more stable and precise clamping situation: Better surface quality Longer tool life times Consistent seating in the headstock even at high speeds Smaller radial run-outA BT double contact Arbor can also be used in a standard BT machine spindle - and vice versa. The advantages of the double contact are however achieved only when a double contact Arbor and double contact spindle are used together. Supplied with: Lock screw. Optional extras: Pull studs PS No. 308760 308806. Special toggle wrench No. 309840. Overhang dimension A: 50 mm a: 1 mm External Dia D: 78 mm Spare Milling cutter lock screw No. 309860 / 309861: 32 Suitable toggle wrench No. 309840: 32
