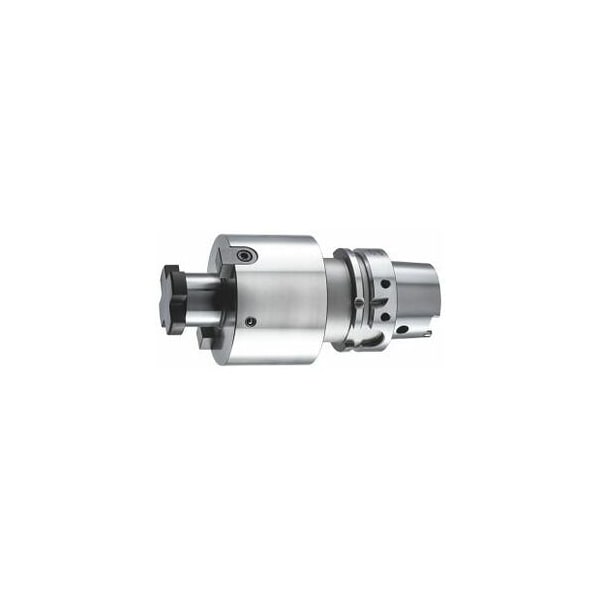

Face Mill Arbor with Cooling Channel Bore, HSK-A 63, Projection: 100, Clamping Diameter: 32mm
Mfr # 306562 32
Zoro # G214774855
product price: $323.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HPC
Balance Quality
G 2.5 at 25,000 rpm
Projection
100 mm
Outside Dia.
78 mm
Spigot Dia.
32 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
306562 32
Zoro #
G214774855
UPC #
-
Country of Origin
Germany
Dimensions
Outside Dia.
78 mm
Spigot Dia.
32 mm
Clamping Dia.
32 mm
Milling Mandrel Length
24 mm
Taper Size
HSK63A
Details
Machining Strategy
HPC
Item
Milling head arbor
Balance Quality
G 2.5 at 25,000 rpm
Projection
100 mm
Suitable Toggle Spanner No. 309840
32
Cooling Channel Bore
Not Pluggable
Concentricity
≤ 6 µm
Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Shank Shape
A
Description
Clamping Dia 40 with 4 tapped holes for drive blocks to DIN 2079. With Balluff/RFID chip bore. Increased collar contact surface. HSK mating faces machined. With Cooling Channel Bores. Application: For clamping shell end Mills and Milling cutter heads. Supplied with: Lock screw Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, toggle wrench No. 309840. Overhang dimension A: 100 mm External Dia D: 78 mm Milling mandrel length L4: 24 mm Spare Milling cutter lock screw No. 309860 / 309861: 32 Suitable toggle wrench No. 309840: 32
