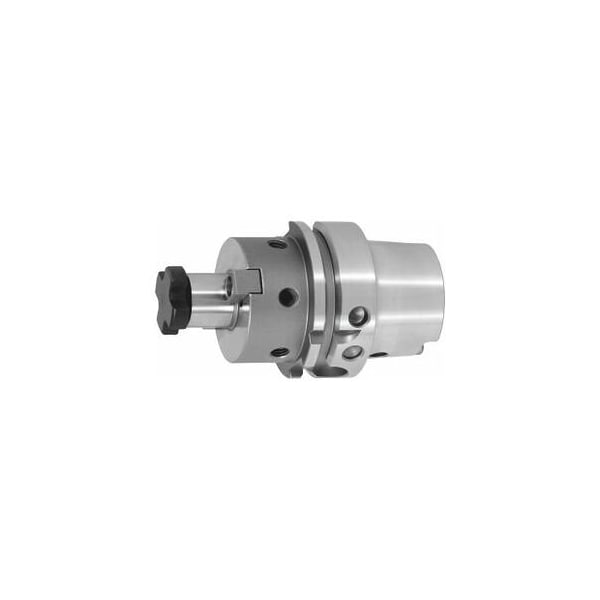

Face Mill Arbor with Cooling Channel Bore, HSK-A 100, Projection: 100, Clamping Diameter: 32mm
Mfr # 306684 32
Zoro # G314772904
product price:Â
$
381.99
/ea
Free Shipping & Returns
Key Features
Machining Strategy
HPC
Cooling Channel Bore
Not Pluggable
Milling Mandrel Length
24 mm
Taper Size
HSK100A
Projection
100 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 306684 32
- Zoro #
- G314772904
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Mandrel Length
- 24 mm
- Taper Size
- HSK100A
- Spigot Dia.
- 32 mm
- Outside Dia.
- 78 mm
- Clamping Dia.
- 32 mm
Details
- Machining Strategy
- HPC
- Cooling Channel Bore
- Not Pluggable
- Item
- Milling head arbor
- Projection
- 100 mm
- Shank Shape
- A
- Suitable Toggle Spanner No. 309840
- 32
- Balance Quality
- G 2.5 at 25,000 rpm
- Spare Milling Cutter Lock Screw No. 309860 / 309861
- 32
- Concentricity
- ≤ 6 µm
Description
Clamping Dia 40 with 4 tapped holes for drive blocks to DIN 2079. With Balluff/RFID chip bore. Increased collar contact surface. HSK mating faces machined. With Cooling Channel Bores. Application: For clamping shell end Mills and Milling cutter heads. Supplied with: Lock screw Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, toggle wrench No. 309840. Overhang dimension A: 100 mm External Dia D: 78 mm Milling mandrel length L4: 24 mm Spare Milling cutter lock screw No. 309860 / 309861: 32 Suitable toggle wrench No. 309840: 32
