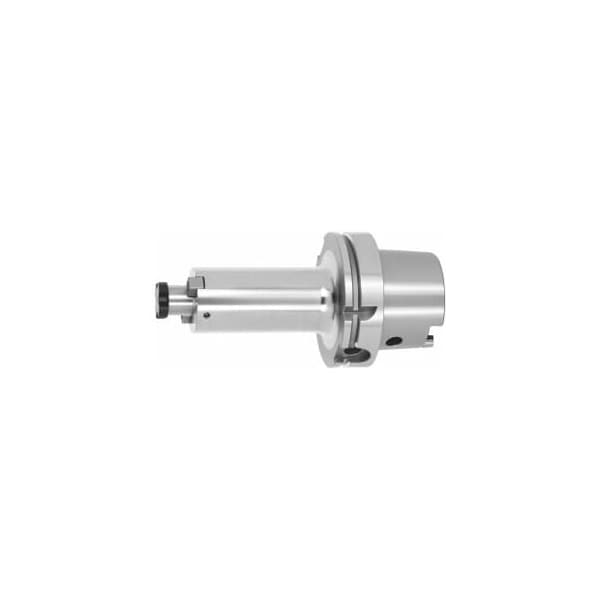

Face Mill Arbor with Cooling Channel Bore, HSK-A 100, Projection: 130, Clamping Diameter: 32mm
Mfr # 306686 32
Zoro # G514772940
product price: $399.99
/ea
Free Shipping & Returns
Key Features
Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Shank Shape
A
Machining Strategy
HPC
Cooling Channel Bore
Not Pluggable
Clamping Dia.
32 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
306686 32
Zoro #
G514772940
UPC #
-
Country of Origin
Germany
Dimensions
Clamping Dia.
32 mm
Outside Dia.
78 mm
Spigot Dia.
32 mm
Milling Mandrel Length
24 mm
Taper Size
HSK100A
Details
Spare Milling Cutter Lock Screw No. 309860 / 309861
32
Shank Shape
A
Machining Strategy
HPC
Item
Milling head arbor
Cooling Channel Bore
Not Pluggable
Suitable Toggle Spanner No. 309840
32
Balance Quality
G 2.5 at 25,000 rpm
Concentricity
≤ 6 µm
Projection
130 mm
Description
Clamping Dia 40 with 4 tapped holes for drive blocks to DIN 2079. With Balluff/RFID chip bore. Increased collar contact surface. HSK mating faces machined. With Cooling Channel Bores. Application: For clamping shell end Mills and Milling cutter heads. Supplied with: Lock screw. Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, toggle wrench No. 309840. Overhang dimension A: 130 mm External Dia D: 78 mm Milling mandrel length L4: 24 mm Spare Milling cutter lock screw No. 309860 / 309861: 32 Suitable toggle wrench No. 309840: 32
