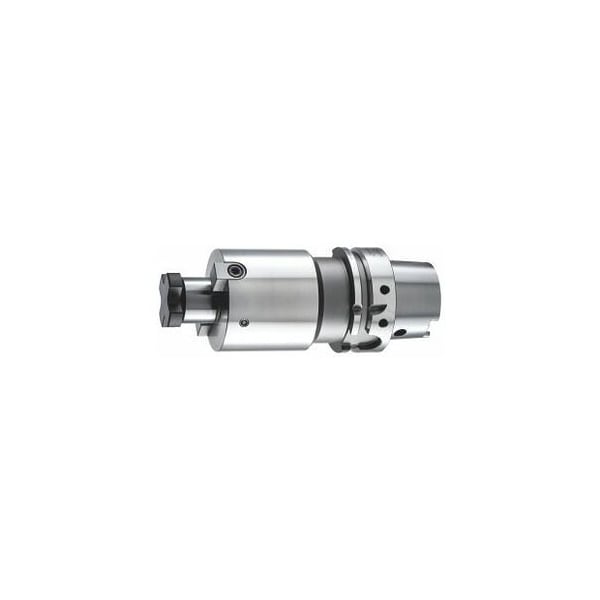

Face Mill Arbor with Cooling Channel Bore, HSK-A 63, Projection: 100, Clamping Diameter: 27mm
Mfr # 306562 27
Zoro # G214774879
product price: $313.99
/ea
Free Shipping & Returns
Key Features
Clamping Dia.
27 mm
Spigot Dia.
27 mm
Taper Size
HSK63A
Cooling Channel Bore
Not Pluggable
Milling Mandrel Length
21 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
306562 27
Zoro #
G214774879
UPC #
-
Country of Origin
Germany
Dimensions
Clamping Dia.
27 mm
Spigot Dia.
27 mm
Taper Size
HSK63A
Milling Mandrel Length
21 mm
Outside Dia.
60 mm
Details
Cooling Channel Bore
Not Pluggable
Machining Strategy
HPC
Projection
100 mm
Item
Milling head arbor
Concentricity
≤ 6 µm
Spare Milling Cutter Lock Screw No. 309860 / 309861
27
Shank Shape
A
Balance Quality
G 2.5 at 25,000 rpm
Suitable Toggle Spanner No. 309840
27
Description
Clamping Dia 40 with 4 tapped holes for drive blocks to DIN 2079. With Balluff/RFID chip bore. Increased collar contact surface. HSK mating faces machined. With Cooling Channel Bores. Application: For clamping shell end Mills and Milling cutter heads. Supplied with: Lock screw Optional extras: Coolant tube No. 309880, socket wrench for coolant tubes No. 309890, toggle wrench No. 309840. Overhang dimension A: 100 mm External Dia D: 60 mm Milling mandrel length L4: 21 mm Spare Milling cutter lock screw No. 309860 / 309861: 27 Suitable toggle wrench No. 309840: 27
